Crushing mill for berries and stone fruits

Optimize your juice production by achieving the finest mash from berries and stone fruits, ensuring reduced suspended solids and minimized oxidation for superior quality end products.

Crushes and Grinds Berries and Stone Fruits

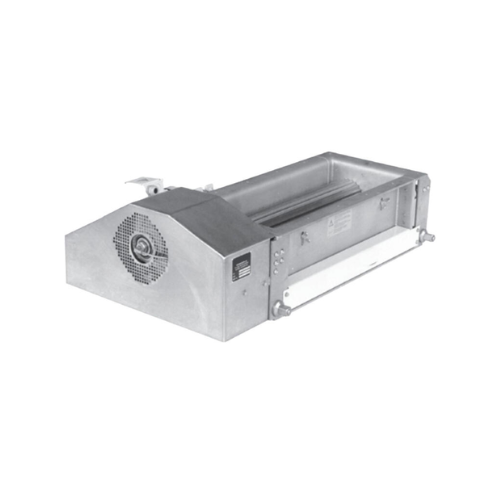

The KVS 2-80 Crushing Mill from Bucher Unipektin is expertly designed for transforming berries and stone fruits into exceptionally fine mash, ideal for juice production and food processing applications. This roller mill utilizes contra-rotating steel rollers with adjustable gaps to efficiently reduce particle size and minimize product oxidation, enhancing the purity and quality of the final product.

Capable of processing between 8 to 12 tons per hour, its adaptable crushing settings ensure optimal particle consistency for producing juice concentrates, purees, and jam bases. Equipped with an asynchronous motor and frequency converter, the mill offers automatic torque protection to prevent damage from foreign object intrusion and auto-shutdown features for enhanced safety.

Constructed from stainless steel (DIN 1.4301), the mill ensures contamination-free processing of food-grade products. Integration into existing lines is seamless, with its continuous, adjustable operation being suitable for pre-processing and processing stages. The KVS 2-80 is designed to support high throughput operations with minimized energy consumption, thanks to its advanced motor control, setting a new standard in fruit processing efficiency.

Benefits

  • Enhances product purity with reduced suspended solids, improving final juice quality.
  • Saves energy through optimized motor control, lowering operational costs.
  • Automatic torque protection minimizes equipment downtime by preventing damage from foreign objects.
  • Stainless steel construction ensures durability and compliance with food safety standards.
  • Easily integrates into existing production lines, enhancing processing efficiency.

General


Applications
Berries,Stone fruits,Fruit processing,Juice production
End products
Jelly base,Stone fruit mash,Smoothie base,Fruit juice concentrate,Berry mash,Fruit puree,Jam base
Steps before
Washing,Sorting,Destemming
Steps after
Juice Extraction,Pressing,Filtration
Input ingredients
berries,stone fruits
Output ingredients
mash,finest mash,fruit juice
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Capacity
8–12 t/h berries
Weight
325 kg
Dimensions
1562 x 733 x 576 mm (L x W x H)
Connected Load
4 kW,400 V
Material
Stainless steel (DIN 1.4301)

Operating Characteristics


Working mechanism
Roller mill crushing
Integrated steps
Crushing,extracting
Batch vs continuous operation
Continuous
Automation level
Automatic with frequency converter
Torque protection
Automatic drive stop
Adjustability
Continuously adjustable gap clearance

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes,Stainless Steel (DIN 1.4301)

Physical Characteristics


Machine footprint
1562 x 733 x 576 mm (L x W x H)
Weight
325 kg
Feed method
Rectangular feed aperture
Discharge method
Rectangular discharge aperture

Custom Options


Control panel type
HMI with frequency converter
Roller spacing adjustment
Continuously adjustable
Protection features
Torque protection with automatic drive stop
Material compatibility
Stainless steel (DIN 1.4301)
