Cork feeders for medium to high production rates

Optimize your cork handling process with precision guidance and high-speed orientation to eliminate jamming and ensure consistent cork placement in beverage bottling lines.

Guides and Feeds Corks for Bottling

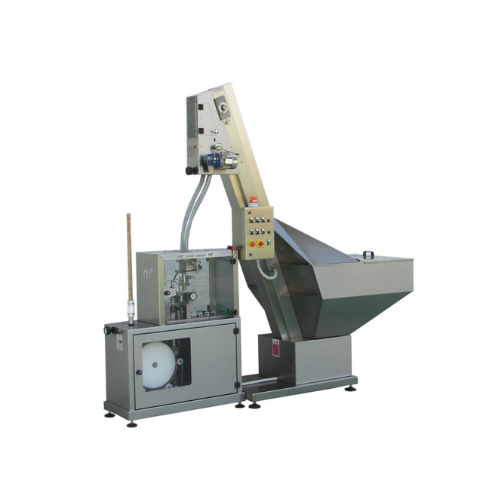

The OR series from Martini Costruzioni MAR.CO. offers sophisticated orientation feeders for natural and synthetic corks in high-speed bottling applications. These feeders utilize precision guidance and pneumatic or mechanical referral systems, ensuring accurate cork positioning and minimal waste. Ideal for beverage manufacturers and wine producers, they handle between 7,000 to 22,000 corks per hour, depending on the model. The equipment seamlessly integrates into existing lines, utilizing PLC control for automation, and features stainless steel construction for durability. Options for hopper sizes and maintenance-friendly features like dust aspirators and quick-release hoppers enhance operational efficiency. The series supports long-distance cork feeding, up to 25 meters, and meets high production demands with minimal adjustments during cork changes.

Benefits

  • Enhances production efficiency with high-capacity cork feeding, reaching up to 25,000 corks per hour.
  • Ensures precise cork orientation, minimizing waste and ensuring consistent sealing quality.
  • Integrates seamlessly into existing bottling lines for uninterrupted operations.
  • Reduces maintenance downtime with durable stainless steel construction and easy-clean features.
  • Supports long-distance feeding up to 25 meters, allowing flexible factory layout and storage solutions.

General


Applications
Sparkling wine closures,Champagne stoppers,Beverage bottling,Liquid packaging,Cork stoppers,Synthetic corks,Cava stoppers
End products
Beverage bottle caps,Sparkling wine bottle closures,Synthetic bottle corks,Cava wine corks,Natural cork wine stoppers,Liquor bottle stoppers,Champagne bottle corks
Steps before
Cork Loading,Material Preparation,Cork Inspection
Steps after
Capping,Packaging,Quality Control
Input ingredients
corks,synthetic corks,plugs
Output ingredients
corks,synthetic corks,capping turret caps,tappatore
Market info

Technical Specifications


Production Rate (Oriented)
7,000–22,000 corks/h
Production Rate (Feeding Only)
7,000–30,000 corks/h
Hopper Capacity
220–1,400 L
Hopper Load Height
98–125 cm
Elevation Conveyor Length
L.200–L.300
Conveyor Output Channels
1–4 channels
Mechanical/Electronic Detection
Mechanical/Electronic
Optical Detection Availability
Yes
Compressed Air Consumption (5 bar)
20–120 nl'
Voltage
V400 – 50HZ
Installed Power
550–1,500 W
Dimensions (LxWxH)
140x70x210 cm – 330x120x400 cm
Weight
240–650 kg
Max Distance for Cork Feeding
5 m (cork) / 5-25 m (synthetic)

Operating Characteristics


Working Mechanism
Pneumatic/Mechanical
Integrated Steps
Sorting and Orientation of Corks
Batch vs. Inline Flow
Inline Continuous
Automation Level
PLC-Controlled
Noise Level
Low Noise Operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Cork type
Natural / Synthetic
Cap orientation
Yes/No
Referral System
Pneumatic / Mechanical

Physical Characteristics


Machine Footprint
140x70 cm to 330x120 cm
Height
210 cm to 400 cm
Weight
240 kg to 650 kg
Hopper Capacity
220 L to 1400 L
Hopper Loading Height
98 cm to 125 cm
Tray/Discharge Method
Pneumatic/Mechanical
Number of Conveyor Channels
1 to 4 channels

Custom Options


Control panel type
Pneumatic / Mechanic
Conveyor output channels
1 / 2 / 4 channels
Hopper capacity
220 / 400 / 800 / 1,400 liters
Hopper quick discharge option
Available
By-pass for direct mechanical feed
Available on select models
Number of feeding channels
1 / 2 / 4
Inspection window availability
Available on select models
