Continuous vacuum stuffer for efficient filling and portioning
Food processing facilities often require precise portioning and filling of products to cater to diverse production needs. Challenges include maintaining high speed, accuracy, and product integrity to ensure consistent quality and minimize waste.
Streamline filling and portioning with precise control

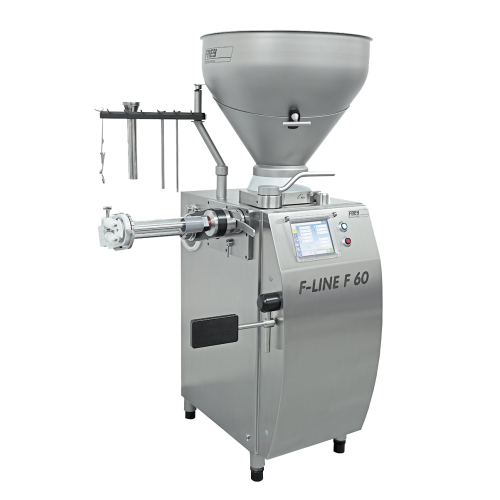

The F-LINE F60 VACUUM STUFFER from Frey Maschinenbau is a fully electronic, continuous vacuum stuffer designed for straight filling, portioning, and linking. Its key features include a robust stainless steel housing and a divisible hopper with a capacity of 25 to 90 liters. The machine achieves impressive filling capacities of up to 2,900 kg/h and a filling pressure of approximately 40 bar. The F-LINE F60 allows portioning ranges from 5 to 100,000 grams, with a portioning speed reaching a maximum of 530 portions per minute. The digitally controlled vacuum system ensures precise operation. The F-LINE F60’s TC266 industrial PC control with an 8.4″ TFT color display provides intuitive, touch-based operation and motion control. Additional features include customizable filling programs and memory storage for up to 200 programs, making it highly adaptable to various production requirements. Optional accessories like the Liftmax lift and tilt device enhance its utility, particularly for facilities handling 120-liter standard feed trolleys.
Benefits
- High filling capacity up to 2,900 kg/h
- Accurate portioning from 5 to 100,000 grams
- Touchscreen control with user-friendly interface
- Memory for 200 custom filling programs
- Optional Liftmax device for ergonomic lifting
