Continuous tumblers for brine injection processes
Enhance product appeal and consistency by seamlessly integrating brine tumbling into your line, ensuring optimal binding and reduced moisture loss for superior end-product presentation.
Reduces Brine Loss and Enhances Product Binding

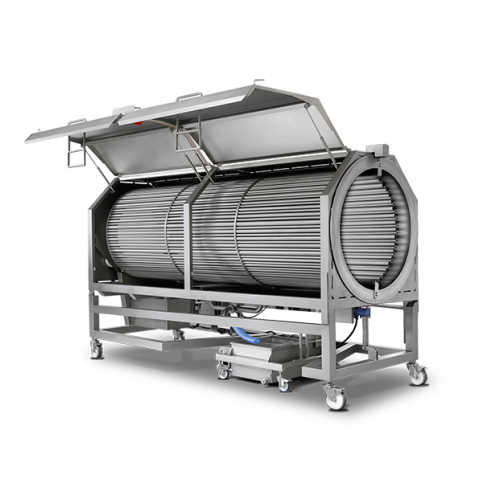

The CT 250 and CT 375 from Fomaco are continuous tumbler machines designed for food processors specializing in red meat, poultry, and fish. Constructed entirely of stainless steel, these machines excel at reducing surface brine and sealing needle marks to enhance the appearance and binding of injected products. The CT 250, suited for smaller injector systems, and the CT 375, compatible with the M3 series, offer adjustable speeds from 3 to 10 rpm and manual or optional motorized tilting. The system’s brine removal and reuse capabilities significantly diminish waste and improve operational efficiency. Equipped with a stainless steel brine collecting buffer tank (PFS 90), these tumblers seamlessly integrate into your processing line, optimizing brine recycling through an integrated transport pump. The units ensure efficient production while maintaining an easy-to-clean design, with the PFS 90 mounted on wheels for mobility during sanitation.
Benefits
- Enhances product quality by reducing brine loss and improving binding.
- Improves production efficiency with continuous operation and minimal waste.
- Flexible integration options with adjustable speed and tilting settings.
- Facilitates easy cleaning and maintenance with mobile design.
- Promotes sustainability with effective brine recycling capabilities.
- Applications
- Red meat,Meat products,Poultry,Fish
- End products
- Chicken breasts,Salmon fillets,Processed ham slices,Beef steaks
- Steps before
- Injection,Marination
- Steps after
- Brine Collecting,Sealing Needle Marks,Binding,Packaging
- Input ingredients
- red meat,poultry,fish,brine,marinade
- Output ingredients
- processed meat,marinated meat,reduced driploss,sealed needle marks,retained marinade
- Market info
- Fomaco is known for manufacturing advanced injection and marinating equipment for the food processing industry, specializing in high-quality machines that ensure uniformity and precision, enhancing product flavor and texture. They have a solid reputation for innovation and reliability.
- Speed
- 3-10 rpm
- Tilting Angle
- Manual / Motor (optional)
- Motor Power CT 250
- 1.1 kW
- Motor Power CT 375
- 2.2 kW
- Conveyor Belt Width CT 250
- Ø 750
- Conveyor Belt Width CT 375
- Ø 980
- Voltage
- 400 V
- Weight CT 250
- 675 kg
- Weight CT 375
- 980 kg
- Working Mechanism
- In-line tumbling
- Flow Type
- Continuous
- Automation Level
- Manual / Motor (Optional)
- Speed Range
- 3-10 rpm
- Adjustable Tilting Angle
- Manual / Motor (Optional)
- Cleaning Method
- Manual
- Brine Collection
- Integrated Buffer Tank (PFS 90)
- Construction Material
- Stainless Steel
- Ability to Reuse Excess Marinade
- Yes
- Abrasion resistance
- Stainless steel construction
- Biological compatibility
- Suitable for food processing
- Cleanability
- Easy to clean stainless steel surfaces
- Corrosive resistance (e.g. acids)
- High resistance due to stainless steel
- Control panel type
- Manual / Motor (option)
- Discharge method
- Conveyor belt
- Compact footprint
- CT 250 / CT 375
- Tumbler model
- CT 250 / CT 375
- Tumbler construction
- Stainless steel
- Conveyor belt width
- Ø 750 / Ø 980
- Tumbler speed
- Adjustable 3-10 rpm
- Tilting angle
- Manual / Motor Option
- Tumbler Model
- CT 250 / CT 375
- Material
- Stainless steel
- Conveyor belt width
- Ø 750 / Ø 980
- Brine Collecting Buffer Tank
- PFS 90
- Motor for tilting
- 0.37 kW
- Voltage
- 400 V
- Weight
- 675 kg / 980 kg
