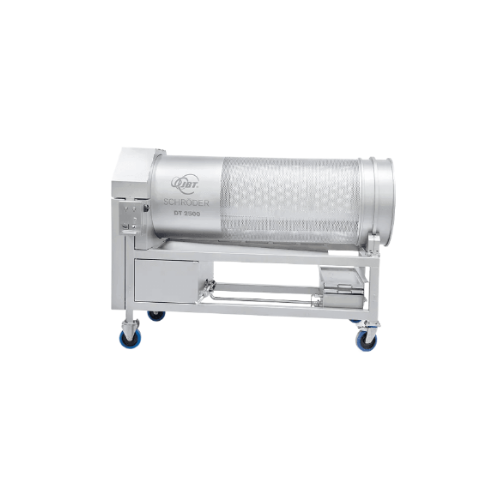

Continuous tumbler for fresh meat processing

Achieve optimal brine distribution and product texture with a continuous tumbling solution that gently massages and transports your meat, poultry, and seafood products while effectively collecting and recycling excess brine.

Massages, Drains, and Collects Brine Continuously

The DT 2500/3700 from JBT Schröder is a continuous stainless steel tumbler designed to enhance the processing of poultry, meat, and seafood. Specially crafted for seamless integration into production lines, it ensures uniform massaging and efficient brine handling. Equipped with variable speed and an adjustable drum slope, it facilitates precise control over product throughput, enhancing the quality of marinated chicken breasts, cured hams, and more. The unique perforated drum length, available in 2500 mm or 3700 mm, effectively drains excess brine, collecting it for recyclability back into the system, ensuring minimal waste and reduced operational costs. Made from stainless steel, this equipment meets stringent hygienic standards, supported by welded brine supply pipes in a controlled atmosphere for residue-free performance. With options like casters for enhanced mobility and a powerful drainage system, the DT 2500/3700 not only maximizes operational efficiency but also supports easy maintenance and sanitation, crucial in food processing environments.

Benefits

  • Enhances product quality through uniform massaging for consistent marinade absorption.
  • Reduces operational costs by recycling excess brine for reuse.
  • Improves production efficiency with variable speed control and adjustable drum slope for precise throughput management.
  • Meets high hygiene standards with stainless steel construction and residue-free components.
  • Facilitates easy cleaning and maintenance, reducing downtime.

General


Applications
Seafood,Meat,Poultry
End products
Cured ham,Beef steaks,Smoked salmon pieces,Marinated chicken breasts,Shrimp in brine,Turkey fillets
Steps before
Injection,Marination,Brine Preparation
Steps after
Packaging,Cooling,Freezing
Input ingredients
fresh meat,brine
Output ingredients
massaged meat,surface brine
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Drum length
2500 mm / 3700 mm
Drum diameter
800 mm
Machine length
2520 mm / 3720 mm
Machine width
1245 mm
Machine height
1825 mm / 1880 mm
Minimum product inlet height
1375 mm / 1430 mm
Minimum product outlet height
860 mm
Variable speed
4 to 12 RPM
Electrical connection
3Ph/PE
400/440V
50/60 Hz
Automation
Selectable rotation direction

Operating Characteristics


Working mechanism
Rotational drum
Rotation speed
4 to 12 RPM
Selectable rotation direction
Yes
Product throughput speed adjustment
Adjustable drum slope
Brine drainage
Perforated drum
Surface brine system
Pumped to injector's filter unit
Automation level
Manual / PLC
Hygienic design
Stainless steel,open design for easy cleaning
Maneuverability
Equipped with casters
Brine supply pipes
Welded in controlled atmosphere
Machine accessibility
Easy access for cleaning

Material Compatibility


Cleanability
High
Due to stainless steel construction
Corrosive resistance (e.g. acids)
Yes
Stainless steel construction
Abrasion resistance
Yes
Stainless steel offers abrasion resistance

Product type Characteristics


Surface brine reduction
Collection and reuse
Meat massaging
Continuous process
Brine transportation
Pump to filter unit
Product movement method
Rotational,slope
Stainless steel construction
Hygienic design

Physical Characteristics


Machine footprint
2520 mm x 1245 mm x 1825 mm (DT 2500),3720 mm x 1245 mm x 1880 mm (DT 3700)
Drum size
2500 mm/800 mm (DT 2500),3700 mm/800 mm (DT 3700)
Material
Stainless steel
Discharge method
Perforated drum drainage for brine
Transport method
Rotational movement with adjustable drum slope
Maneuverability
Equipped with casters

Custom Options


Control panel type
Customizable HMI
Integration possibilities
Compatible with existing injection systems
Adjustable drum slope
Yes
Variable speed
4 to 12 RPM
Drum length
2500 mm / 3700 mm
Rotation direction
Selectable
Maneuverability
Equipped with casters
