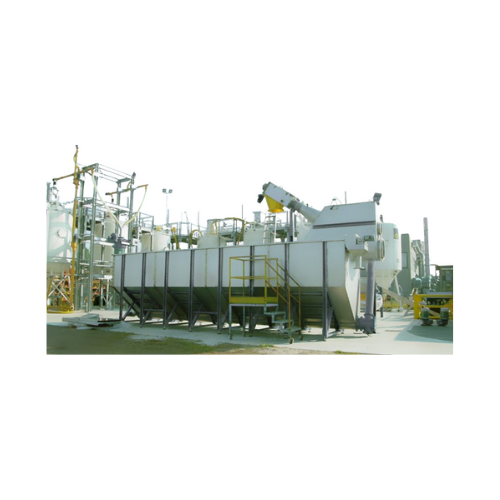

Compact plant for mechanical effluent pre-treatment

Streamline your wastewater pre-treatment process by efficiently separating solids, sand, and grease in one compact unit, enhancing the capacity and effectiveness of downstream treatment systems.

Separates and Processes Wastewater Components Efficiently

The WASTEMASTER TSF 2-3 from WAMGROUP is a compact pre-treatment plant specifically designed for the challenging demands of wastewater management in both municipal and industrial settings. This system is engineered to efficiently separate solids, sand, and grease using a series of integrated components, including a screw screen, sand extracting screws, and degreasing devices. It handles a flow rate of up to 210 liters per second and significantly reduces solid volume by up to 35%, offering significant cost savings on downstream treatment. With a modular design, it facilitates seamless integration into existing setups and performs continuous operation with minimal manual oversight. The absence of internal bearings and the use of special long-life screw brushes minimize maintenance needs and maximize operational uptime. Furthermore, its construction from durable, corrosion-resistant materials ensures longevity and reliability, even in harsh operational environments. Designed with environmental and industrial compliance in mind, the WASTEMASTER TSF 2-3 is customizable to meet specific facility requirements, making it an ideal solution for diverse industries, including food processing, beverage manufacturing, and plastics recycling.

Benefits

  • Minimizes operational costs by reducing solid volumes up to 35%.
  • Ensures continuous operation without jamming, even with fibrous materials.
  • Facilitates easy onsite assembly, eliminating the need for extensive civil works.
  • Operates efficiently in limited space with a compact, modular design.
  • Lowers maintenance requirements with shaftless spirals and absence of internal bearings.

General


Applications
Food processing waste water,Industrial waste water treatment,Abattoirs waste water,Plastics recycling waste water,Sludge treatment,Beverage industry waste water,Paper processing waste water,Pulp,Municipal waste water treatment
End products
Dewatered sludge cakes,Clarified pulp and paper processing effluent,Treated abbatoir wastewater,Treated municipal effluent,Recycled plastic pelleting water,Clarified food industry wastewater,Clarified beverage industry wastewater,Treated industrial effluent
Steps before
Collection,Screening,Pumping
Steps after
Purification,Secondary treatment,Sludge treatment
Input ingredients
sewage,wastewater,solid waste,sand,grit,greasy matter,floating fats,suspended solids
Output ingredients
dewatered solids,compacted solids,separated sand,separated grit,removed grease,removed floating matter
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Flow rates
Up to 210 litres per second (445 cfm)
Inlet screen mesh
0.5 ~ 10 mm
Sand separation particle size
90% particle size ≥ 200 μm
Solids volume reduction
Up to 35%
Voltage
Alternative voltage options available
Degree of motor protection
Alternative protection available
Screen type
Various types available
Automation
Control panel available

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Machine footprint
Optimum footprint-net volume ratio
Tank shape
Rectangular or custom
Discharge method
Screw screen and sand/grit extracting screw
Control panel type
Alternative voltage and frequency options

Custom Options


Control panel type
PLC Controlled
Voltage and frequency
Alternative options available
Motor protection degree
Alternative options available
Screw screen type
Customizable mesh size (0.5 ~ 10 mm)
