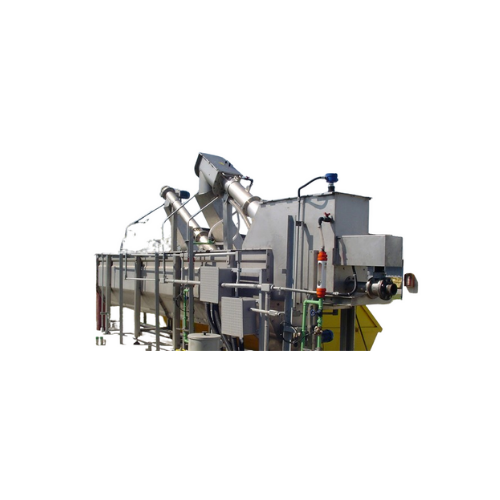

Combined septage receiving station for solid waste compaction

Streamline wastewater treatment by efficiently handling de-watering, sand separation, and grease removal in one compact system, ideal for optimizing plant operations and reducing manual intervention.

Processes Sewage by Separating Solids, Sand, and Grease

The WASTEMASTER TSB 2-3 from WAMGROUP is a versatile septage receiving station designed for efficient municipal and industrial wastewater pre-treatment. It integrates de-watering, compacting, and separation processes into a single, compact unit. This equipment excels in processing sewage by separating solids, sand, and grease, essential for preventing treatment plant overload.

With a flow rate of up to 30 liters per second, it reliably handles applications across varied industries such as food processing, beverage production, and pulp and paper processing. The TSB 2-3 reduces solids volume by up to 40% and ensures a 90% sand separation efficiency for particles ≥ 200 μm.

Engineered for easy integration, its modular design allows over-ground installation to optimize space and eliminate the need for civil works. The low RPM and shaftless spirals minimize maintenance costs and prevent jamming, even with fibrous materials. Available with alternative motor configurations, this septage receiving station can be adapted to specific operational needs, ensuring seamless incorporation into existing wastewater treatment systems.

Benefits

  • Enhances operational efficiency with modular design for space-saving installation.
  • Minimizes maintenance and repair costs due to low RPM operation and absence of internal bearings.
  • Achieves significant solids volume reduction, optimizing waste management.
  • Prevents obstructions and ensures continuous operation with shaftless spiral technology.
  • Adaptable to specific site requirements with customizable motor and configuration options.

General


Applications
Sand separation,Vegetable processing waste water,Food processing waste water,Catering waste water,Abattoirs waste water treatment,Industrial waste water treatment,Pulp processing waste water,Tanneries waste water treatment,Dyeing works waste water treatment,Sludge treatment,Beverage industry waste water,Paper processing waste water,Starch by-products processing,Plastics recycling industry waste water,Grease removal,Municipal waste water treatment,Sewage treatment,Fruit processing waste water
End products
Filtered beverage production water,Washed sand,Tanned leather,Processed catering wastewater,Dewatered sludge,Recycled plastics wastewater,Treated dye waste,Recycled pulp wastewater,Separated grease,Treated animal rendering wastewater,Starch derivatives,Purified fruit and vegetable rinse water,Treated paper mill water,Clarified food industry wastewater,Clean effluent water
Steps before
Collection of sewage,Transportation by purge tankers,Screening of solid waste
Steps after
Further purification,Sludge treatment,Wastewater treatment,Sanitation
Input ingredients
sewage,septage,raw waste,screened solid waste,sand,greasy matter,septic tanks,cesspools,interceptors,industrial wastewater
Output ingredients
de-watered solids,compacted solids,separated sand,removed grease,cleaned wastewater
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Flow rate
up to 30 litres per second (63.5 cfm)
Inlet screen mesh size
5,6,7 mm
Sand separation efficiency
90% particle size ≥ 200 μm
Solids volume reduction
up to 35%
Operating configuration
Modular design

Operating Characteristics


Working Mechanism
Screw conveyor-based
Integrated Steps
De-watering,compacting,sand separation,grease removal
Batch vs Continuous Operation
Continuous
Cleaning Method
Manual
Energy Efficiency
Low r.p.m.
Automation Level
PLC Controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes,especially suitable for limited space areas
Discharge method
Possible discharge into plastic bags
Control panel type
Available as an option

Custom Options


Control panel type
Alternative voltage and frequency
Degree of motor protection
Alternative
Screen type
Customizable
Packaging Accessories
Bag clamping system,Endless tube for screenings,Endless tube for sand
