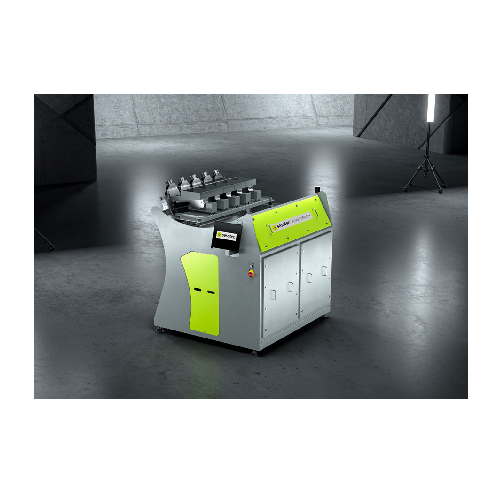

Chute sorting systems for recycling plastics and glass

Streamline your recycling operations by efficiently sorting and purifying mixed material flows, ensuring high precision contaminant removal with advanced sensor technologies designed to handle high-speed, continuous processing environments.

Separates and Sorts Recycled Plastics and Glass

The FLAKE PURIFIER+ and SPEKTRUM from Sesotec are cutting-edge multi-sensor sorting systems designed specifically for recycling applications. Utilizing a combination of high-resolution CCD cameras, near-infrared sensors, and inductive metal detectors, these systems precisely separate and sort various recycled materials, including PET and HDPE plastic flakes as well as glass fragments. Capable of handling continuous high-speed operations, they are ideal for achieving clean, high-purity end products such as single-colour glass fractions and high-purity PET flakes. The modular design allows for easy integration into existing production lines, with a PLC-controlled system ensuring seamless automation and remote monitoring. Energy-efficient optimization reduces air and electricity consumption, while the robust construction offers durability and minimal maintenance requirements. Fully customizable with multi-sensor configurations, these systems can adapt to a wide range of recycling challenges, ensuring optimal performance and productivity in any facility.

Benefits

  • Achieves high-purity output by efficiently removing contaminants from mixed materials.
  • Enhances throughput with optimized material distribution and fast processing speeds.
  • Lowers energy costs due to reduced compressed air and electricity consumption.
  • Easily integrates into existing lines with user-friendly touch display and intuitive navigation.
  • Adaptable for future needs with modular design and effortless sensor retrofitting.

General


Applications
Household waste,Glass,Plastics,Metal,Electrical waste
End products
Hdpe plastic flakes,Flat glass,Recycled glass fragments,Mixed plastic flakes,Container glass,Pet flakes,Single-colour glass fractions,High-purity glass cullet
Steps before
Shredding,Material Preparation
Steps after
Packing,Quality Inspection,Final Sorting
Input ingredients
shredded material,plastic flakes,regrind,glass fragments,mixed materials
Output ingredients
sorted plastic flakes,sorted regrind,sorted glass fragments,contaminant-free materials,single-colour glass fractions
Market info
Sesotec is known for specializing in the development and manufacturing of innovative machine technology, particularly for metal detection, sorting, and separation systems used across industries such as food, plastics, and recycling, ensuring product quality and safety.

Technical Specifications


Accuracy
High-resolution CCD,near-infrared,inductive metal detectors
Detection type
Colour,shape,material
Material type
Plastic flakes,regrind,glass fragments
Air ejection speed
Down to the millisecond
Sensors used
CCD cameras,near-infrared,inductive metal sensors
Automation
Smart operating software SesoDesk
Sensor processing
Parallel signal processing with Octa-Core technology
Energy efficiency
Optimised for compressed air and electricity consumption
Throughput
High material throughput levels with optimised inlet chute
Modular design
Up to three sensors combined

Operating Characteristics


Working mechanism
Vibrating trough conveyor
Sensor technology
CCD cameras,NIR sensors,Inductive metal detectors
Detection accuracy
High-resolution scanning
Automation level
Automated air ejection
Material throughput
Optimized for higher throughput
Modular design
Configurable with up to three sensors
Retrofitting
Sensors can be retrofitted
Energy efficiency
Optimized compressed air and electricity usage
Cleaning method
Easy cleaning and maintenance
Interface
Touch display with intuitive navigation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material Type
Plastic flakes,glass fragments
Installation ease
Simple installation

Physical Characteristics


Compact footprint
Yes
Control panel type
Touch display with intuitive navigation
Discharge method
Air ejection unit for contaminant removal
Machine footprint
Optimized inlet with extended chute
Feed method
Vibrating trough conveyor

Custom Options


Control panel type
Touch display
Sensor configuration
Multi-sensor options (colour,shape,metal,near-infrared)
Integration possibilities
Modular design for flexible system configuration
Retrofitting capabilities
Possible to retrofit sensors
User interface
Intuitive navigation with smart operating software
Energy optimization
Optimized for compressed air and electricity consumption
