Chicken wing segmentor for consistent a-grade cuts
Enhance your poultry processing efficiency with precision wing segmenting, consistently achieving high-grade cuts to optimize productivity and product quality in high-speed operations.

Segments and Automates Chicken Wing Processing

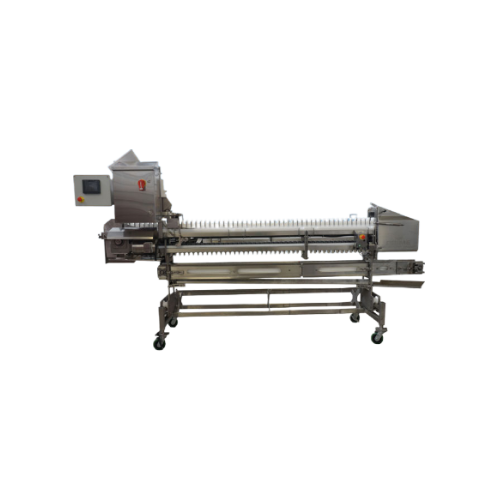

The CWS-1 Fixed Blade Chicken Wing Segmentor by Prime Equipment Group revolutionizes poultry processing by automating wing cutting and segmenting with precision and safety. It is designed to replace inconsistent hand-saw techniques, delivering uniform, a-grade wing portions. Utilizing a robust fixed blade mechanism, the segmentor efficiently processes up to 200 whole wings per minute, optimizing labor utilization and production throughput. Integrated seamlessly into high-speed, continuous production lines, it significantly reduces manual intervention and improves safety by automating hand-saw cuts. With a net weight of 600 lbs for the 2-station model, it operates on a 1 hp motor at 480V, ensuring steady performance. Suitable for food, poultry, meat, and seafood industries, it enhances production processes by delivering consistent quality in end products like chicken wing segments and poultry wing portions.
Benefits
- Enhances worker safety by eliminating hazardous hand-saw operations.
- Delivers consistent, high-quality wing cuts, increasing the percentage of a-grade products.
- Maximizes production efficiency with a throughput of up to 200 wings per minute.
- Improves labor utilization by fully automating cutting processes.
- Seamlessly integrates into continuous, high-speed production lines, minimizing operational disruptions.
- Applications
- Seafood,Meat,Poultry
- End products
- A-grade chicken wing cuts,Poultry wing portions,Chicken wing segments
- Steps before
- Cut-up,Deboning,Skinning,Poultry Processing - 1st Processing,Fresh Cut Technologies
- Steps after
- Portioning,Slicing,Cooking,Coating,Freezing,Chilling,Proofing
- Input ingredients
- whole chicken wings
- Output ingredients
- consistent a-grade wing cuts,segmented chicken wings
- Market info
- JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.
- Motor Power
- 1 hp motor
- 480V,3 ph,60 Hz,10 amps
- Additional Motor Power
- 1/2 hp
- 480V,3ph,60 Hz,8 amps
- Water Connection
- 3/8 poly connection
- 1.0 GPM (3.78 LPM)
- 40 PSI min.
- Net Weight
- 2-station 600 lbs. (272 kg)
- Additional Station Weight
- 250 lbs. (113 kg)
- Production Rate
- Up to 200 whole wings per minute
- Automation level
- Automatic
- Batch vs. continuous operation
- Continuous
- Production rate
- Up to 200 whole wings per minute
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Control panel type
- Fixed Blade Operation
- Integration possibilities
- Automation compatible
