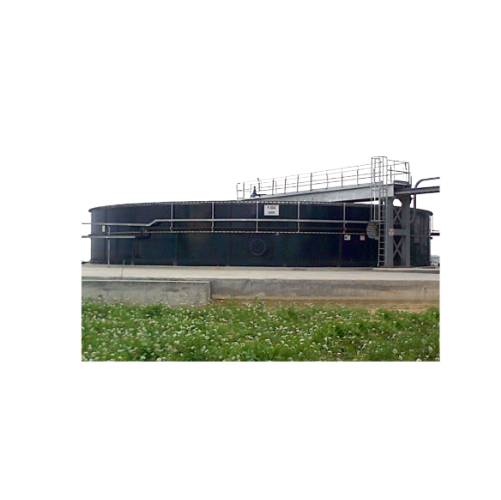

Central traction clarifiers for wastewater sludge removal

Efficiently handle waste challenges with precision-engineered clarifiers, expertly designed to streamline sludge removal and enhance water quality across various treatment stages.

Removes Sludge and Clarifies Wastewater

The Central Traction Clarifiers PTC from WAMGROUP offer reliable sludge removal and wastewater clarification for municipal and industrial applications. Using a central drive shaft, these clarifiers efficiently separate sludge from wastewater in circular settling tanks, commonly used in municipal treatment plants, pulp, and paper processing, as well as tanneries and dyeing works. With a capacity for tanks up to 18 meters in diameter, they support continuous, automated operations. The equipment is constructed from robust materials, including hot dip-galvanized carbon steel and stainless steel options, for enhanced durability and resistance to corrosion. Integration is seamless, with options for alternative voltage, motor protection levels, and electric torque limit switches ensuring adaptability to various operational conditions. Maintenance is simplified, and quick installation into existing setups is achievable, emphasizing the unit’s practicality and efficiency in diverse treatment environments.

Benefits

  • Increases operational efficiency by streamlining sludge removal and water clarification processes.
  • Quick installation minimizes downtime, allowing for rapid deployment in existing tanks.
  • Low maintenance requirements reduce overall operating costs.
  • Suitable for varying tank sizes, offering flexibility for plant design and upgrades.
  • Enhances sustainability by optimizing sludge management and water recycling.

General


Applications
Animal by-products handling,Industrial waste water treatment,Industrial solid waste handling,Sludge treatment,Clean water treatment,Pulp,Municipal waste water treatment,Paper processing,Dyeing works,Tanneries
End products
Stabilized solid waste,Purified pulp water,Treated tannery water,Treated municipal water,Dewatered sludge,Processed animal by-products,Processed dye effluent,Potable clean water,Clarified paper mill effluent,Treated industrial water
Steps before
Primary treatment,Screening,Grit removal,Pre-oxidation
Steps after
Sludge digestion,Sludge dewatering,Effluent discharge,Post-clarification treatments
Input ingredients
wastewater,biological sludge,industrial waste water,municipal waste water
Output ingredients
clean water,settled sludge,sludge
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Tank Diameter
up to 18m
Bearing Size
Central bearing for units larger than 14m in diameter
Efficiency
High efficiency in removing biological sludge
Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Installation
Quick installation
Maintenance Cost
Low cost maintenance

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High resistance
Density/particle size
Suitable for sludge

Product type Characteristics


Tank diameter
Up to 18m

Physical Characteristics


Tank shape
Circular
Tank size
Up to 18m in diameter
Material of construction
Concrete,Hot-dip galvanized carbon steel,304 L / 316 L SS
Central bearing size
For units larger than 14m in diameter
Walkway material
Hot-dip galvanized carbon steel,304 L / 316 L SS
Discharge method
Central sum pit
Scraper type
Bottom scrapers
Feed method
Central cylinder
Material of launder
Thomson profile weirs

Custom Options


Motor Protection Degree
Alternative degrees available
Material Options
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Diameter of Tank Supported
Up to 18m
Bearing Type
Central bearing for units larger than 14m
Walkway Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Accessories
Electric torque limit switch,Scum removal device
Voltage and Frequency Options
Alternative voltage and frequency options
