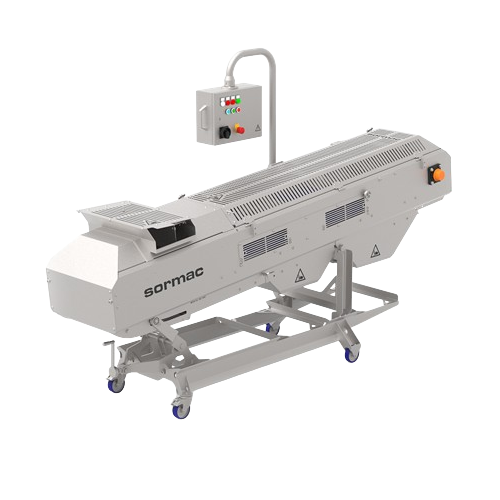

Carrot topping and cutting system for high-capacity processing

Optimize your carrot processing with a high-speed system that offers precise topping, tailing, and cutting, ensuring clean cuts and reducing waste for superior end-product quality.

Processes and Cuts Carrots Efficiently

The WOS-1A Carrot Topper and Piece Cutter from Sormac is engineered for high-speed carrot processing. This versatile machine incorporates a chain-mounted flight system and aligning belts to top, tail, and slice carrots with precision. Suitable for producing carrot sticks, slices, and diced pieces, it processes up to 9,600 carrots per hour. The static knives and unique positioning system ensure clean, square cuts, minimizing waste. Adjustable slicing accommodates user-specific size requirements, supported by easily removable knives for maintenance efficiency.

The WOS-1A seamlessly integrates into existing production lines, fed directly from peelers such as the Sormac KP-60 and UP-8000. Operators can adjust its height and use the hinge-mounted control panel for optimal working positions. Designed for continuous operation, this machine is ideal for food processing and vegetable production companies seeking robust and reliable carrot processing solutions. Available customization and engineering support ensure it fits specific operational demands.

Benefits

  • Enhances production speed by processing up to 9,600 carrots per hour, increasing output efficiency.
  • Ensures precise cuts with minimal waste through a unique static knife positioning system, improving product quality.
  • Offers flexible production options with adjustable slicing sizes and removable knives for varied product demands.
  • Integrates seamlessly with existing lines, reducing setup time and operational disruptions.
  • Optimizes operator ergonomics with an adjustable height and control panel, improving ease of use and productivity.

General


Applications
Processed carrots,Vegetables
End products
Carrot chunks,Diced carrots,Carrot slices,Carrot sticks,Baby carrots
Steps before
Peeling,Washing,Sorting
Steps after
Packaging,Inspection,Conveying
Input ingredients
carrots,singulated carrots
Output ingredients
topped carrots,tailed carrots,squared cut carrot pieces,carrot tops,carrot tails
Market info
Sormac is known for its expertise in manufacturing high-quality vegetable processing equipment, particularly peeling, washing, and slicing machines, with a strong reputation for innovation, reliability, and customer-focused solutions in the food processing industry.

Technical Specifications


Capacity
9,600 carrots per hour
Product Diameter
Maximal 75 mm (3 inches)
Product Length
Maximum 350 mm (14 inches)
Slicing Length
Standard 50 mm,adjustable
Orientation Control
Aligning belts with guide plate
Knife Type
Static knives
Adjustability
12 to 29 mm
Adjustable Height
Yes
Control Panel
Hinge-mounted

Operating Characteristics


Automation level
Manual / PLC controlled
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual
Changeover time
Quick adjustment for knife changes and size settings
Air incorporation control
Ensured by static knives design

Material Compatibility


Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Feed method
Manual / Automatic from peeler
Discharge method
Separate top,tail,and final product exit
Control panel type
Hinge-mounted
Maximum carrot diameter
75 mm (3")
Maximum carrot length
350 mm (14")
Cut piece length
50 mm standard
Adjustable on request
Adjustable elements
Guide plate,top size,height

Custom Options


Control panel type
Hinge-mounted
Slicing length
Adjustable,50 mm standard
Top size adjustment
12 to 29 mm
Integration possibilities
Compatible with knife peelers (KP-60,UP-8000) and transport conveyor
Height adjustment
Adjustable height
