Carbon dioxide and water analyzer for cement and lime
Ensure precise moisture and carbon dioxide quantification in construction materials, facilitating rapid quality control and compliance testing in an efficient bench-top format.
Measures Carbon Dioxide and Water Content

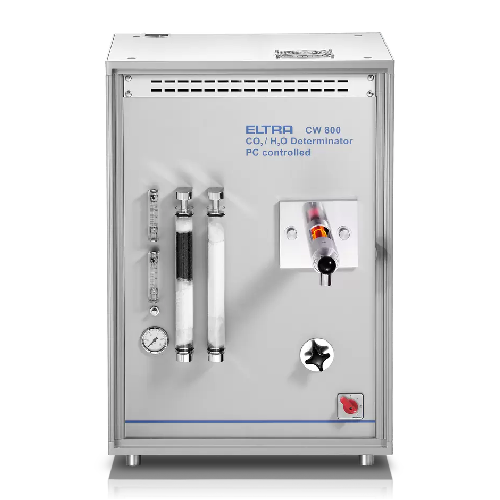

The CW-800 from ELTRA GmbH is a precise analytical solution designed to accurately measure carbon dioxide and water content in various materials. This specialized equipment features a resistance furnace capable of reaching up to 1000°C, allowing comprehensive testing and analysis of samples like cement, lime, gypsum, ores, and soil. Utilizing a solid-state infrared absorption method, the CW-800 ensures reliable and accurate results within just 2 to 3 minutes. Two customizable infrared cells enable precise measurement adaptability for diverse applications. Ideal for the cement, lime, construction materials, mining, and environmental industries, the CW-800 offers seamless integration into laboratory and processing environments. With robust design, electronic gas flow control, and minimal maintenance requirements, this manual, benchtop analyzer enhances operational efficiency and supports stringent quality control measures.
Benefits
- Enhances quality control with rapid CO2 and H2O analysis in 2 to 3 minutes.
- Offers flexible application with customizable infrared cells for diverse material testing.
- Minimizes operational costs through low maintenance and robust design.
- Ensures precise temperature control for consistent, reliable measurements.
- Integrates easily into lab and production settings, optimizing workflow efficiency.
- Applications
- Lime,Construction materials,Ores,Gypsum,Minerals,Soil,Cement
- End products
- Calcite,Gypsum boards,Concrete blocks,Hydrated lime,Portland cement,Alumina,Iron ore pellets,Potting soil
- Steps before
- Sampling,Weighing,Sample Preparation
- Steps after
- Data Analysis,Result Export,Quality Control
- Input ingredients
- lime,gypsum,cement,ores,soil,minerals
- Output ingredients
- carbon dioxide,water
- Market info
- ELTRA Elemental Analysers is renowned for producing high-quality elemental analyzers, specializing in precise carbon, sulfur, oxygen, nitrogen, and hydrogen measurement in inorganic samples. Their reputation is built on reliability and accuracy in analytical instrumentation.
- Measured elements
- Carbon dioxide,water
- Furnace alignment
- Horizontal
- Furnace type
- Resistance furnace with quartz tube
- Temperature range
- Up to 1000 °C
- Temperature setting increment
- 1 °C
- Carrier gas type
- Nitrogen
- Carbon dioxide measurement
- Simultaneous with water
- Typical analysis time
- 2 - 3 min
- Number of IR cells
- 1 - 2
- IR path material
- Gold
- Chemicals required
- Magnesium perchlorate,sodium hydroxide
- Gas purity requirement
- Nitrogen 99.995% pure
- Gas pressure range
- 2 - 4 bar / 30 - 60 psi
- Power requirements
- 230 V,50/60 Hz,max. 10 A,2300 W
- Dimensions
- 55 x 80 x 60 cm
- Weight
- ~ 65 kg
- Required equipment
- PC,monitor,balance (resolution 0.0001g)
- Optional accessories
- Voltage stabilizer 5 KVA
- Automation level
- External PC Control
- Batch vs. continuous operation
- Batch
- Temperature Control
- Fixed during measurement
- Changeover time
- N/A
- Cleaning method
- Manual
- Energy efficiency
- High
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- 55 x 80 x 60 cm
- Weight
- ~ 65 kg
- Sample carrier
- Quartz boats
- Furnace alignment
- Horizontal
- Furnace material
- Quartz tube
- Control panel type
- PC,monitor
- Temperature setting customization
- Up to 1000 °C in 1 °C steps
- Infrared cell configuration
- 1-2 customizable IR cells
- Software capabilities
- Multilingual,customizable display
- Integration with external PC
- Yes,for data processing and control
- Carrier gas control
- Fixed nitrogen gas
- Detection sensitivity adjustment
- Customizable for CO2 and H2O
