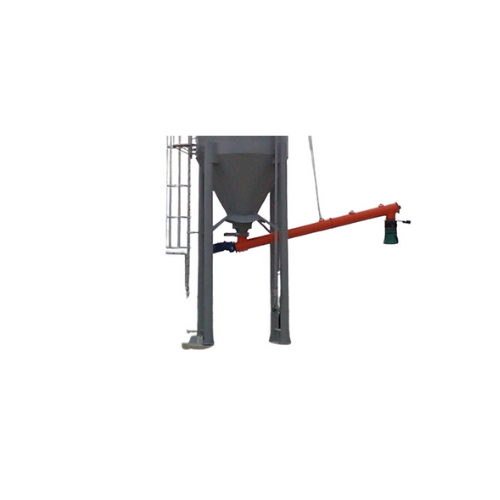

Bulk solids tanker loading bellows

For industries looking to efficiently load dry, non-dusty bulk solids into tankers, these loading bellows provide a space-saving solution with dust control features, ensuring reduced emissions and seamless integration into existing material handling processes.

Controls Dust While Loading Bulk Solids into Tankers

The Tanker Loading Bellows ZN by WAMGROUP offers an efficient solution for dust-controlled loading of dry, non-dusty bulk solids into tankers. Designed to fit seamlessly into construction, food, and chemical industry operations, this equipment stands out with its single telescopic bellows chute and compact design—ideal for installations where space is a premium. The ZN model supports a throughput rate of up to 250 m³/h and functions efficiently within a temperature range of -40 to 150°C. Engineered to facilitate manual operations, the bellows include a manual winch system and upper connecting flange for ease of handling. Optional ATEX-certified versions and a variety of chute and fabrication materials are available to meet specific industry needs. Though lacking a dust suction inlet, its integrated sealing cone ensures a precise connection to tanker inlets, significantly reducing dust emissions during the loading process. This equipment is particularly well-suited for handling a diverse range of solid, powder, and granular products such as cement, animal feed, and plastic resins, while supporting industry-specific regulatory compliance and maintaining a maintenance-friendly design.

Benefits

  • Enhances operational efficiency by reducing dust emissions during tanker loading.
  • Saves space with a compact design suitable for constrained installations.
  • Facilitates easy handling through a manual winch system, minimizing operational complexity.
  • Offers material customization options to accommodate diverse industry requirements.
  • Operates reliably across a wide temperature range, ensuring versatility in challenging environments.

General


Applications
Lime,Drymix materials,Steel,Asphalt,Chemical ad-mixtures,Pesticides,Minerals,Bakery products,Fly-ash,Cement,Insecticides,Biscuit products,Ceramics,Animal feed,Construction materials,Marble,Building materials,Pet food,Rice,Plastics,Salt,Fertilizers,Gypsum,Iron,Foundry materials,Refractory products
End products
Plastic resin beads,Steel billets,Dog kibble,Refractory bricks,Mineral aggregates,Poultry feed pellets,Cast iron components,Salt packs,Marble slabs,Pre-mixed mortar,Ceramic tiles,Pesticide granules,Gypsum board,Pre-packaged biscuits,Fly ash blocks,Insecticide powder,Cement bags,Lime powder bags,Packaged rice,Urea fertilizer,Pre-baked bread loaves
Steps before
Bulk material collection,Dry bulk solids preparation,Material blending
Steps after
Transportation,Bulk solids storage,Distribution
Input ingredients
dry bulk solids,non-dusty bulk materials
Output ingredients
tanker,loaded bulk solids
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Inlet diameter
300 mm (12 in)
Maximum throughput rate
250 m³/h (147 cfm)
Operating temperature
-40 ~ 150 °C (-40 ~ 300 °F)
Chute type
Telescopic bellows chute
Sealing
Sealing cone at lower end

Operating Characteristics


Dust Control
Efficient dust-controlled loading
Manual Operation
Manual winch with transmission
Space Efficiency
Compact overall dimensions
Automation Level
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Inlet Diameter
300 mm (12 in)
Maximum Throughput Rate
250 m3/h (147 cfm)
Operating Temperature
-40 ~ 150 °C (-40 ~ 300 °F)
Compact Footprint
Yes

Custom Options


Discharge method
Telescopic bellows chute
Compact footprint
Suitable for limited space
Material fabrication options
Available according to material handled
ATEX version
Available
Upper connecting flange
Provided
Manual winch with transmission
Included
Dust skirt
Included
