Blown bottle inspection system

Ensure the integrity and quality of your plastic containers with a high-speed inspection system designed to detect defects and prevent costly production line jams.

Inspects and Detects Defects in Blown Bottles

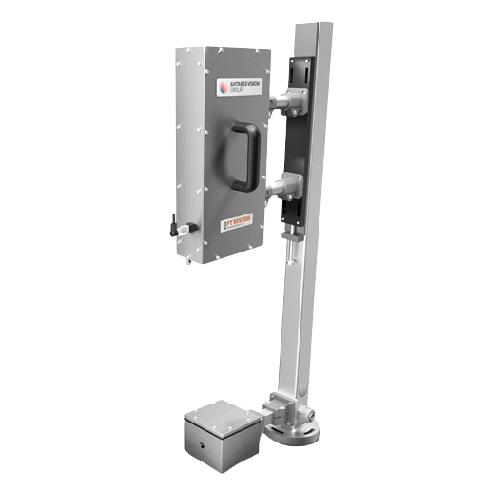

The QP 700 from Antares Vision Group is engineered to elevate quality control for beverage and food packaging industries. This blown bottle inspection system integrates seamlessly within high-speed production lines, offering continuous, precise defect detection using advanced camera systems. The equipment identifies various imperfections such as contamination, scratches, bubbles, and deformations in plastic bottles, ensuring product integrity and reducing the risk of jams and rejects.

Designed for applications across beverage and food packaging, the QP 700 efficiently handles a range of end-products including water, juice, and soda bottles, as well as shampoo and detergent containers. With its modular design, the system can be integrated directly into blow moulding machines or operate as a stand-alone setup. It supports expandable inspection modules, facilitating future inspection needs.

Automation is enhanced with a user-friendly interface, coupled with data analysis capabilities and production records storage. The system supports quick integration with existing operations via PLC controls and offers IoT expansion for digital factory environments. By maintaining high inspection accuracy, the QP 700 helps manufacturers improve production efficiency while minimizing waste and energy consumption.

Benefits

  • Enhances product quality by identifying defects before filling processes.
  • Increases production efficiency through reduced jams and product rejects.
  • Offers flexibility with stand-alone and integrated configurations for diverse operational needs.
  • Streamlines data management with real-time inspection results and historical production records.
  • Facilitates future scalability with expandable inspection modules.

General


Applications
Food packaging,Plastic bottles,Rigid containers,Beverage containers
End products
Liquid soap dispensers,Food storage containers,Energy drink containers,Sports drink bottles,Soda bottles,Cooking oil bottles,Conditioner bottles,Water bottles,Sauce containers,Juice bottles,Shampoo bottles,Milk jars,Detergent bottles,Yogurt drink bottles
Steps before
Steps after
Input ingredients
blown bottles
Output ingredients
inspected bottles,defect-free bottles
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Detection type
Vision system
Automation
Integrated with blow moulding machine
Configuration
Stand-alone or integrated
Interface
User-friendly
Data Analysis
Production records storage
Inspection areas
Neck,neck ring,walls,base
Inspection capabilities
Detects contamination,scratches,bubbles,black spots,foreign bodies,deformations,pinholes
Expandability
Expandable with other inspections

Operating Characteristics


Automation level
User-friendly interface / PLC-controlled
Integration
Modules integrated inside blow moulding machine / Stand-alone configuration available
Inspection Capability
Detects contamination,scratches,bubbles,black spots,foreign bodies,deformations,pinholes
Defect Detection Features
Neck finish,Neck ring,Walls,Base
Data Management
Production records and picture storage / Data analysis
Expandability
Expandable with other inspections

Material Compatibility


Compatibility with plastic materials
Blown bottles (e.g.,PET)
Surface finish compatibility
Scratches,bubbles resistance

Product type Characteristics


Container type
Blown Bottle

Physical Characteristics


Machine footprint
Compact
Integration method
Integrated into blow moulding machine or stand-alone
Control panel type
User-friendly interface
Inspection modules
Advanced camera systems
Configuration
Expandable with other inspections

Custom Options


Integration Possibilities
Integrated or Stand-alone
User Interface
User-friendly
