Bias slicer for elongated produce
Achieve consistent crinkle or flat bias slices for elongated products, ensuring uniformity and precision in high-speed operations while maintaining smooth flow in your production line.
Slices Bread and Vegetables Continuously

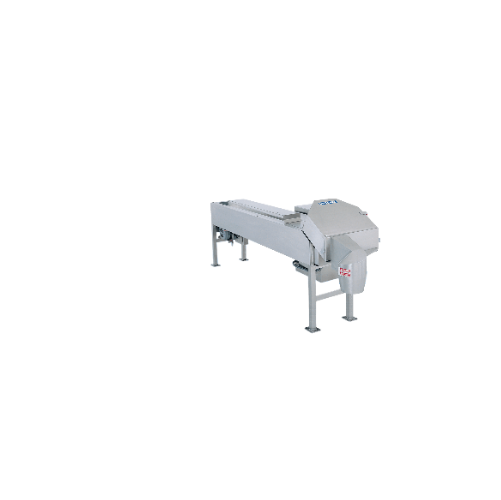

The Model OC Crosscut Bias Slicer from Urschel Laboratories, Inc. is a versatile slicer tailored for food processing and industrial bakery applications. It efficiently handles elongated products such as bread, carrots, celery, and plantains, producing both crinkle and flat slices. Engineered for continuous operation, it minimizes downtime with its robust design, improving production line efficiency. The slicing process utilizes a 16.625″ diameter bias slicing wheel, supported by a 3 HP motor and a 3/4 HP feed belt motor, ensuring consistent throughput for high-demand environments. The slicer accommodates products up to 2.5″ in diameter, making it adaptable across various food processing needs. Constructed for easy cleaning and maintenance, its design simplifies post-operation procedures, allowing for seamless integration into existing production lines. For enhanced slicing precision, the slicer can be equipped with the MicroSlice® Wheel for ultra-thin cuts, ensuring product quality meets exacting industry standards. Additionally, its compliance with applicable patents ensures it integrates cutting-edge technology for reliable performance.
Benefits
- Enhances production efficiency with continuous, uninterrupted operation.
- Reduces labor and cleanup time due to its simplified design.
- Increases slicing precision for diverse product specifications with adjustable slicing options.
- Supports high-speed operations to meet demanding production schedules.
- Adapts to various product sizes, enhancing versatility across bakery and vegetable processing applications.
- Applications
- Bread,Fruits,Vegetables
- End products
- Crinkle-sliced bread,Flat-sliced celery,Flat-sliced carrots,Flat-sliced plantains
- Steps before
- Washing,Sorting,Trimming
- Steps after
- Packaging,Further Processing,Inspection
- Input ingredients
- bread,carrots,celery,okra,plantain
- Output ingredients
- bias crinkle slices,bias flat slices,bread slices,carrot slices,celery slices,okra slices,plantain slices
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Slice Thickness Range
- 1/16" – 1-3/4" (1.6 – 44.5 mm)
- Maximum Product Diameter
- 2.5" (63.5 mm)
- Slicing Wheel Diameter
- 16.625" (422.3 mm)
- Length
- 117.04" (2973 mm)
- Width
- 35.08" (891 mm)
- Height
- 44.70" (1135 mm)
- Net Weight
- 770 lb (349 kg)
- Motor
- 3 HP (2.2 kW)
- Feed Belt Motor
- 3/4 HP (.56 kW)
- Operating Principle
- Conveyor Belt,Slicing Wheel,Knives
- Crinkle Slice Example
- Bread 1/4" (6.4 mm) Bias Crinkle Slice
- Flat Slice Example
- Carrot/Celery 1/8" (3.2 mm) Bias Flat Slice
- MicroSlice® Wheel
- Plantain .060" (1.5 mm) Bias Flat Slice
- Special Angle Cutting
- 45-Degree Angle Cutting Available
- Continuous operation
- Yes
- Slicing mechanism
- Crosscut bias slicing
- Slicing angle
- Adjustable to 45-degree
- Slice type
- Crinkle and flat bias slices
- Product diameter acceptance
- Up to 2.5" (63.5 mm)
- Cleaning method
- Simplified for easy cleanup
- Maintenance
- Simplified design
- Automation level
- Manual setup
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product shape compatibility
- Elongated products (e.g.,bread,carrots,celery,okra,plantain)
- Product size compatibility
- Up to 2.5" (63.5 mm) in diameter or width
- Machine Length
- 117.04" (2973 mm)
- Machine Width
- 35.08" (891 mm)
- Machine Height
- 44.70" (1135 mm)
- Net Weight
- 770 lb (349 kg)
- Maximum Product Diameter/Width
- 2.5" (63.5 mm)
- Slicing Wheel Diameter
- 16.625" (422.3 mm)
- Discharge Method
- Continuous Operation
- Slicing Angle (Model OC-45)
- 45 degrees
- Slicing wheel diameter
- 16.625" (422.3 mm)
- Product acceptance diameter
- Up to 2.5" (63.5 mm)
- Types of cuts
- Bias Flat Slices,Bias Crinkle Slices
- Special applications
- MicroSlice® Wheel
- Angle slicing option
- 45-degree angle (Model OC-45)
