Automatic vegetable corer

Streamline your salad processing line with high-speed coring and dividing, allowing you to minimize labor while maximizing output of prepped vegetables ready for further processing or packaging.

Cores and Divides Vegetables Efficiently

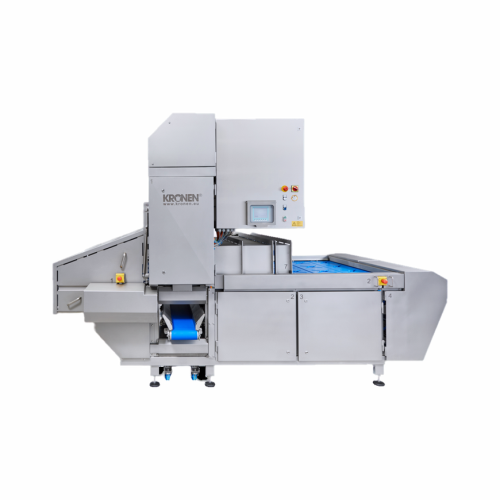

The Multicorer (4B/2B) from KRONEN GmbH is a semi-automatic machine tailored for the efficient coring and dividing of vegetables such as lettuce, cabbage, and bell peppers. This equipment stands out for its ability to significantly reduce labor requirements while processing up to 2,400 pieces per hour. Utilizing a straightforward loading mechanism, the Multicorer enhances productivity by allowing a single operator to manage large volumes. Its customizable lanes can handle various product types simultaneously, catering to diverse food processing needs. Built for seamless integration into existing production lines, the Multicorer supports continuous high-speed operations and offers quick-change cassettes for different cutting diameters, ensuring minimal downtime. Its stainless steel construction provides durability and hygiene compliance, making it ideal for demanding environments like vegetable and salad processing facilities.

Benefits

  • Increases productivity by processing up to 2,400 pieces per hour with a single operator.
  • Cuts labor costs through automation, reducing the need for manual coring and dividing.
  • Enhances operational efficiency with quick-change cutting cassettes, minimizing downtime.
  • Customizable lanes allow simultaneous processing of multiple products, offering flexibility.
  • Ensures high hygiene standards with durable stainless steel construction.

General


Applications
Lettuce,Bell peppers,Salads,Cabbage,Produce,Vegetables
End products
Endive salad,Chopped lettuce mix,Iceberg salad,Red cabbage coleslaw,Vegetable medley packs,Prepped salad kits,Stuffed bell peppers,Frisée salad,White cabbage slaw,Radicchio salad
Steps before
Trimming,Sorting,Washing,Loading
Steps after
Further processing,Mixing,Packaging
Input ingredients
iceberg lettuce,frisée,endive,radicchio,red cabbage,white cabbage,peppers
Output ingredients
cored lettuce,cored cabbage,cored peppers,divided lettuce segments,divided cabbage segments,divided pepper segments
Market info
KRONEN is known for manufacturing industrial food processing equipment, specializing in washing, cutting, peeling, and packaging machinery, recognized for innovation, high quality, and efficiency in automated food processing solutions.

Technical Specifications


Capacity
up to 2,400 pieces/h
Automation
Semi-automatic
Electrical Power
7.2 kW
Voltage
400 V / 200 V
Frequency
50 Hz
Water Connection
32 l/min. at 2 bar
Air Pressure
6–7 bar
Air Consumption
414 NL/min
Dimensions
3725 x 2670 x 2440 mm
Weight
1525 kg
Infeed/Placement Height
1020 mm
Outfeed/Delivery Height
660 mm
Cycle Rate
up to 20 cycles/min
Diameter of Raw Product
max. 240 mm
Height of Raw Product
max. 240 mm
Cycles per Hour
max. 1200

Operating Characteristics


Automation level
Manual
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
Manual
Energy efficiency
Low energy consumption
Changeover time
Quick changeover

Product type Characteristics


Corability
Multi-product adaptability
Maximum Diameter
240 mm
Processing Capacity
up to 2,400 pieces/h

Physical Characteristics


Machine Footprint
3725 x 2670 x 2440 mm

Custom Options


Control panel type
Standard / Touchscreen
Lane adjustment
Individual product lanes adjustable
Knife cassette change
Tool-free quick change
Product plate size
Various sizes for different cutting diameters
Discharge options
Customizable waste and good product discharge belts
