Automatic meatball forming solution
Enhance your production line efficiency by seamlessly forming and stacking a variety of patties and meatballs, ensuring consistent shapes and sizes while automating the portioning process.
Forms and Stacks Hamburgers and Meatballs

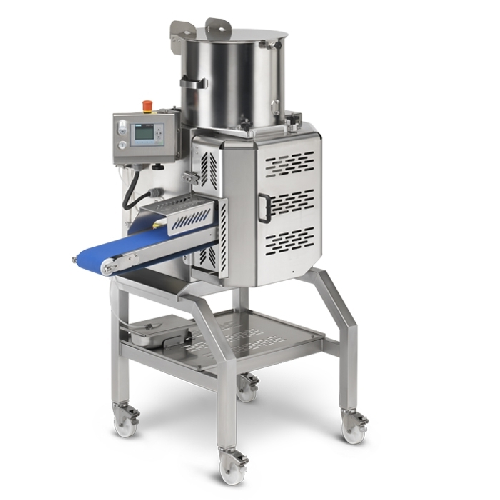

The C/E HF from Minerva Omega Group is a versatile forming machine specifically designed for industrial food production environments. This equipment excels in automatically shaping and stacking hamburgers and meatballs, addressing the fast-paced demands of food processing plants. Featuring a stainless steel construction, it ensures durability and hygiene compliance. With its robust 40-liter hopper and adjustable speed variators, the machine can form up to 3,000 hamburgers or 6,000 meatballs per hour, depending on the mixture. Integration into existing production lines is seamless, thanks to its compact trolley design with self-braking wheels. The C/E HF is both ETL Sanitation and cETL Safety certified, ensuring compliance with North American standards. Easy cleaning and maintenance are facilitated by its removable shaft assembly and automatic scraper device, while its paper interleaver device and oil feeder for meatballs enhance operation efficiency. Perfect for food manufacturers and industrial kitchens seeking to optimize their meat product throughput.
Benefits
- Maximizes productivity with high-speed forming of up to 6,000 meatballs per hour.
- Enhances operational efficiency and product consistency with automatic stacking capabilities.
- Minimizes labor requirements through easy integration and automated processes.
- Ensures hygiene and safety compliance with ETL and CE certified stainless steel design.
- Simplifies maintenance with easily removable components for quick cleaning.
- Applications
- Meat products,Meatball production,Food processing,Hamburger production,Processed meats
- End products
- Meatballs,Beef patties,Pork meatballs,Hamburgers,Chicken patties,Veggie patties
- Steps before
- Meat Mincing,Mixing,Meat Grinding
- Steps after
- Patty Stacking,Packaging,Chilling,Freezing
- Input ingredients
- ground meat,meat mixture
- Output ingredients
- hamburgers,meatballs
- Market info
- Minerva Omega Group Italy is known for producing high-quality food processing equipment, including meat grinders, slicers, and mixers, tailored for industrial applications, with a strong reputation for innovation, reliability, and customer customization.
- Power Supply
- 230 V / 1 / 50 Hz
- Power Input
- 0.9 kW (1.2 HP)
- Hopper Capacity
- 40 l
- Hamburgers Max. Output
- ~ 3000 per hour
- Meatballs Max. Output
- ~ 6000 per hour
- Patty Max. Diameter
- Ø 135 mm
- Patty Max. Thickness
- 30 mm
- Meatball Min. Diameter
- Ø 25 mm
- Meatball Max. Diameter
- Ø 39 mm
- Net Weight
- 160 kg
- Working mechanism
- Automatic forming and stacking
- Automation level
- Automatic
- Cleaning method
- Manual
- Batch vs. continuous operation
- Batch
- Changeover time
- Quick for different patty sizes
- Cleanability
- Stainless steel structure,complies with CE standards in terms of hygiene
- Corrosive resistance (e.g. acids)
- Stainless steel
- Hopper Capacity
- 40 L
- Maximum Patty Diameter
- 135 mm
- Maximum Patty Thickness
- 30 mm
- Minimum Patty Diameter
- 25 mm
- Maximum Meatball Diameter
- 39 mm
- Stacking Height for Hamburgers
- 80 mm
- Net Weight
- 160 kg
- Discharge Method
- Automatic Scraper Device
- Stacking function
- Yes
- Speed variators
- Yes,for Hamburgers and Meatballs
- Paper Interleaver Device
- Yes
- Oil feeder
- Yes,for meatballs
- Size variation
- Hamburgers Max Ø 135 mm,Meatballs Max Ø 39 mm
