Automated turkey mid-wing splitter

Achieve precise turkey mid-wing splits with enhanced operator safety and efficiency, effortlessly boosting your production rate to up to 100 pieces per minute, making it an essential asset for high-speed poultry processing lines.

Separates and Splits Turkey Mid-Wings

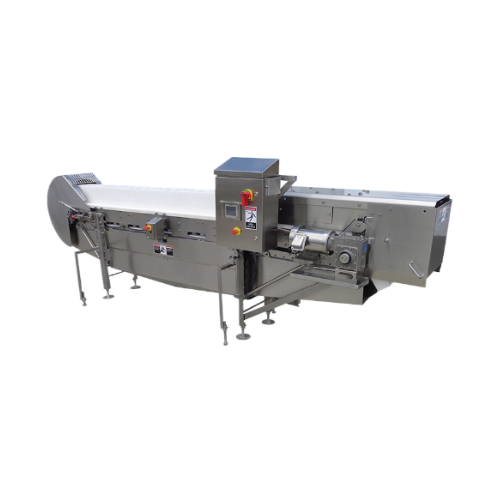

The TMWS-1 Turkey Mid-Wing Splitter from Prime Equipment Group is engineered for precise separation and consistent splitting of turkey mid-wings. This machine addresses the challenge of maintaining high-speed production rates while ensuring operator safety through a well-guarded cutting area. Capable of processing up to 100 mid-wings per minute, it features cavities that ensure precise wing positioning for consistent cuts. Its narrow frame design optimizes ergonomics, allowing for flexible operation with two to four associates depending on production demands. Electrical efficiency is achieved with a 2 hp motor and water requirements of 1 GPM at 40 PSI. Suitable for poultry, meat, and seafood processing, the TMWS-1 seamlessly integrates into continuous and manual operations within food processing lines, ensuring enhanced productivity and safety.

Benefits

  • Enhances operator safety with a well-guarded cutting area.
  • Increases productivity by processing up to 100 mid-wings per minute.
  • Offers ergonomic flexibility, accommodating two to four operators for varied production needs.
  • Ensures consistent, high-quality cuts with precise wing positioning.
  • Reduces manual handling, optimizing worker efficiency.

General


Applications
Seafood,Meat,Poultry
End products
Processed turkey wings,Chicken wing portions,Turkey mid-wings,Meat portions (if within scope),Seafood fillets (if applicable to the technology specifics),Turkey wing portions,Boneless turkey mid-wings,Poultry wing cuts,Pre-packaged turkey wings,Chicken wings,Pre-seasoned poultry wing cuts
Steps before
Poultry Processing - Primary,Portioning,Injection,Marination
Steps after
Packaging,Coating,Freezing,Chilling,Proofing,Cooking
Input ingredients
turkey mid-wings
Output ingredients
separated turkey mid-wing pieces,two mid-wing pieces per turkey
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Speed
Up to 100 mid-wings/min
Electrical requirements
(1) 2 hp motor,208-230/460V,60 Hz
Water requirements
1 GPM,40 PSI (min),3/8” OD inlet
Net Weight
Approx
Operator Capacity
Two-four operators

Operating Characteristics


Cutting Rate
Up to 100 mid-wings/min
Automation Level
Manual operation with operator loading
Operator Safety
Well-guarded cutting area
Ergonomics
Narrow frame maximizes ergonomics
Production Flexibility
Flexible space for 2-4 operators

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine weight
Approx
Production rate
Up to 100 mid-wings/minute
Narrow frame
Maximizes ergonomics
Operator capacity
Two-four associates
Guarding
Well-guarded cutting area
Product loading
Plastic product cavities

Custom Options


Control panel type
Touchscreen / PLC interface
Integration possibilities
SCADA / MES systems
Operator interfaces
Multiple operator stations
User capacity
2-4 operators
Frame design
Narrow ergonomic frame
