Automated single cell and colony picking system

Streamline your cell selection and retrieval processes with a high-precision system designed for rapid imaging, detection, and isolation, ensuring accuracy and integrity while accelerating your research from stem cell applications to antibody discovery.

Isolates and Retrieves Single Cells and Colonies

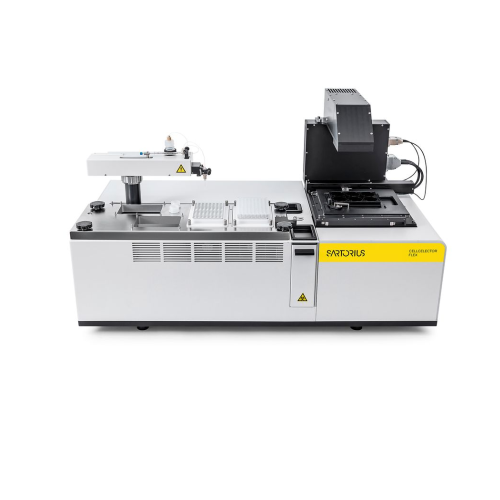

The CellCelector Flex from Sartorius is an automated cell imaging and picking system engineered to meet the demands of cutting-edge cell biology research. Its unique integration of a high-content imaging system and a micro-manipulation robot allows for precise isolation of single cells, clusters, spheroids, and colonies. Equipped with interchangeable picking modules, it accommodates a variety of research needs, from stem cell research to antibody discovery. Designed for efficiency, the CellCelector Flex ensures high-speed operation with real-time visualization, supporting environments from commercial biotech labs to academic research facilities. The system offers automated imaging in up to six channels and supports a wide array of cell and colony morphology with bright-field, phase contrast, and fluorescence microscopy. It is fully compliant with GLP and GMP standards, guaranteeing reliable documentation and traceability. Customization is enhanced through user-adjustable protocols and a broad selection of material-compatible components for diverse applications.

Benefits

  • Streamlines cell isolation processes, enhancing research efficiency.
  • Protects cellular integrity with gentle transfer, reducing damage.
  • Customizable protocols accommodate diverse research needs.
  • Ensures regulatory compliance with GLP and GMP documentation.
  • Offers versatile use across multiple research applications and user groups.

General


Applications
Single cell cloning,Tissue applications,Cell line development,Stem cells,Cell biology research,Ctc screening,Organ spheroids,Antibody discovery
End products
Cellular assays,Tissue-engineered constructs,Genetically engineered cell lines,Organ spheroid models,Monoclonal antibodies,Biosimilar development,Induced pluripotent stem cells,Circulating tumor cell samples
Steps before
Sample Preparation,Cell Culturing,Media Preparation,Seeding Cells,Microscope Calibration
Steps after
Cell Analysis,Data Documentation,Cell Cultivation,Downstream Processing,Archiving
Input ingredients
single cells,cell clusters,spheroids,organoids,single cell clones,adherent colonies,semi-solid media,liquid media,cell samples,fluorescent markers
Output ingredients
isolated single cells,isolated cell clusters,isolated spheroids,isolated organoids,isolated single cell clones,isolated adherent colonies,picked clones,picked colonies,segmented cells,morphology data,fluorescence data,documented experiments
Market info
Sartorius AG is renowned for manufacturing high-precision laboratory and bioprocess equipment. They specialize in filtration, fermentation, and cell cultivation systems, known for their innovation and reliability in the pharmaceutical and biotech industries.

Technical Specifications


Imaging Channels
Up to 6 channels
Objective Magnification
2x to 40x
Image Analysis
Automated cell/colony segmentation and gating
Picking Capillary/Tip Size
20 µm to 1.2 mm
Automation
Fully automated picking modes
Software Interface
Graphical user interface with account access levels
Workflow Steps
Scanning,Analysis,Detection,Picking,Documentation
Picking Parameters
User adjustable for volumes,height,aspiration,and dispensing speeds
Fluorescence Channels
Up to 14 colors

Operating Characteristics


Automation level
Fully Automated
Integrated Steps
Scanning,Analysis,Detection,Picking,Documentation
Picking Efficiency
Up to 100%
Batch vs. Continuous Operation
Batch
CIP/SIP
Not Applicable
Cleaning Method
Manual
Energy Efficiency
Not Specified
Changeover Time
Rapid Module Loading
Air Incorporation Control
Not Applicable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Picking modes
Single cell,adherent colony,semi-solid media

Custom Options


Control panel type
Graphical user interface
Interchangeable picking modules
Single Cell,Adherent Colony,Semi-solid Media
Automated turret
Up to 6 objectives
Adapters for labware
Source plates,destination plates
User adjustable picking protocols
Aspiration volumes and speeds
