Ashing furnace for biomass with afterburner
Efficiently process high-smoke materials like biomass through advanced afterburner technology, ensuring clean combustion and effective sample handling.

Processes Biomass and Industrial Waste into Ash

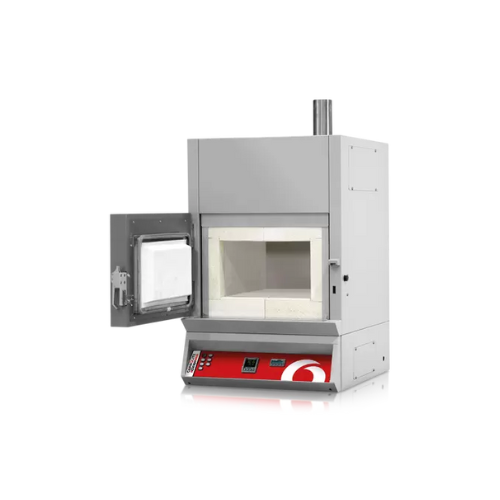

The Afterburner Ashing Furnace ABF 8/28 from Carbolite Gero is engineered to efficiently handle smoke-generating materials, offering a robust solution for biomass processing, environmental testing, and more. Featuring an advanced dual-chamber design, it ensures complete combustion of fumes through a high-temperature afterburner, optimizing smoke processing. The unit’s two-tier sample baskets and a spacious 28-liter chamber accommodate varying sample sizes, making it suitable for diverse applications such as turning biomass into charcoal or calcining minerals. The programmable EPC3016P1 controller allows precise operation, while the independent afterburner control reaches temperatures up to 950°C, ensuring thorough processing of even challenging materials. With an option for sophisticated digital controllers and over-temperature protection, the furnace can be seamlessly integrated into existing production lines with Ethernet communications. Built with silicon carbide shielded wire wound elements and supplied with a standard 3-phase power supply, the ABF 8/28 efficiently processes solid, powder, and granulated materials, making it an invaluable asset across chemical, material testing, and research laboratory environments.
Benefits
- Ensures complete fume combustion, enhancing air quality and safety in processing facilities.
- Accommodates large sample loads, increasing throughput for high-demand applications.
- Allows precise temperature control, improving process accuracy and material properties.
- Integrates with existing systems via Ethernet, facilitating remote monitoring and control.
- Reduces operational disruptions with programmable functions, optimizing production efficiency.
- Applications
- Polymers,Ceramics,Metal powders,Food waste,Industrial waste,Minerals,Biomass,Catalysts
- End products
- Ash from food processing waste,Sintered ceramic components,Activated catalytic agents,Solid waste ash,Iron oxide powder,Decomposed polymer residues,Charcoal from wood chips,Calcined clay
- Steps before
- Sample Preparation,Weighing,Material Loading,Biomass Collection
- Steps after
- Smoke Filtration,Fume Extraction,Cooling of Gases,Sample Collection
- Input ingredients
- biomass,larger samples,materials generating smoke
- Output ingredients
- ash,processed fumes,combusted smoke
- Market info
- Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.
- Maximum Operating Temperature
- 800°C
- Ashing Chamber Volume
- 28 Litre
- Afterburner Temperature Control
- Up to 950°C
- Carbon Ashing Load
- Up to 40 g
- Temperature Controller Type
- Programmable EPC3016P1
- Element Type
- Silicon carbide shielded wire wound
- Power Supply
- 3-phase supply
- Communication Option
- Ethernet
- Controller Options
- Digital controllers,multisegment programmers
- Over-temperature Protection
- Optional
- Basket System
- Two tier perforated
- Maximum operating temperature
- 800°C
- Afterburner temperature control
- Up to 950°C
- Batch size
- 28 Litre chamber volume
- Airflow control
- Preheated air inlet,complete combustion
- Exhaust processing
- High temperature afterburner
- Automation level
- Programmable EPC3016P1 controller
- Loading system
- Two tier baskets with loading tray
- Energy supply
- 3-phase supply
- Communication
- Ethernet communications
- Sample type
- Larger samples or materials with substantial smoke
- Ashing material compatibility
- Biomass,high smoke generating materials
- Temperature Resistance
- Up to 800°C
- Chamber volume
- 28 Litre
- Maximum operating temperature
- 800°C
- Afterburner temperature
- up to 950°C
- Sample baskets
- Two tier set
- Controls
- Programmable EPC3016P1 controller
- Supply
- 3-phase as standard
- Airflow
- Preheated air inlet
- Wire wound elements
- Silicon carbide shielded
- Number of Sample Baskets
- Two-tier system
- Chamber Volume
- 28 Litres
- Floor Stand
- Optional
