Accurate seed dispenser for lab use

Streamline your seed handling process with a versatile dispenser capable of quickly and accurately placing diverse seed types into standard or custom containers, eliminating the need for manual loading.

Dispenses Seeds Quickly and Accurately

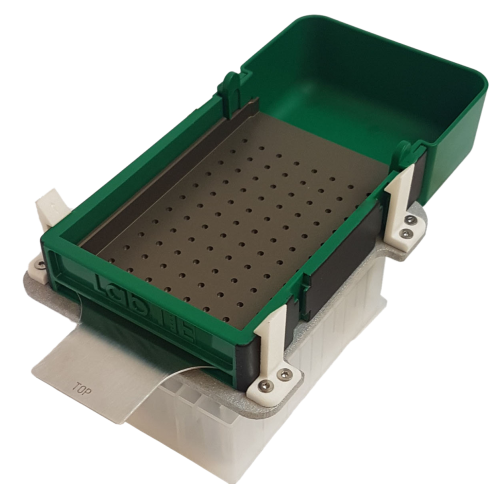

The LabTIE Seed Dispenser is a versatile manual dispenser designed for precise seed distribution, featuring a modular design and exchangeable mesh plates. Capable of dispensing over 100 seed types, including challenging varieties like Arabidopsis Thaliana, it integrates seamlessly into laboratory or pre-processing environments in agriculture and biotechnology settings. With compatibility for industry-standard containers such as microtiter plates and germination trays, this semi-automated system minimizes manual handling, improving throughput by dispensing seeds in as little as 30 seconds. Constructed with anodized aluminum, it offers durability with anti-static properties, and supports easy cleaning. Custom configurations are available to meet specific seed types and container requirements.

Benefits

  • Enhances efficiency by eliminating manual seed loading, saving time.
  • Adapts to diverse seed types and container standards, increasing versatility.
  • Minimizes seed interaction and contamination risks with anti-static components.
  • Supports quick and accurate seed dispensing, boosting throughput in research environments.
  • Provides customization options for unique requirements, ensuring precise application fit.

General


Applications
Plant genetics,Biotechnology,Seed processing,Agribusiness,Seed production,Crop science,Horticulture,Agronomy,Plant science,Agriculture
End products
Vegetable seeds,Grain seeds,Lettuce seeds,Arabidopsis thaliana seeds,Onion seeds,Flower seeds,Microgreens seeds,Nursery stock seeds,Herb seeds,Hybrid seeds
Steps before
Seed Selection,Seed Sorting,Seed Cleaning,Container Preparation
Steps after
Planting,Seedling Cultivation,Irrigation,Monitoring Growth
Input ingredients
seeds,seed types,input material
Output ingredients
dispensed seeds,seed grids,filled containers
Market info
Molgen is known for manufacturing customized engineered-to-order (ETO) equipment, specializing in tailored solutions for complex industrial needs. Their expertise lies in innovative engineering, delivering high-quality, precise, and reliable machinery that meets specific client requirements.

Technical Specifications


Seed size range
0.2–9.0 mm
Standard Grids
24-well,48-well,50-well,96-well,100-well,384-well
Automation
Semi-automated
Material
Anodized aluminium
Anti-static Handling
Anti-static properties
Compatibility
100+ different seed types
Cycle time
30 seconds
Container Compatibility
Tubes,vials,microtiter and deep-well plates,petri dishes,germination trays

Operating Characteristics


Working mechanism
Manual with slider
Automation level
Semi-automated
Changeover time
Quick exchangeable mesh plates
Batch vs. continuous operation
Batch
Cleaning method
Easy to clean

Material Compatibility


Density/particle size
0.2–9.0 mm

Physical Characteristics


Discharge method
Slider mechanism
Seed size range
0.2 – 9.0 mm
Standard Grids
24-well,48-well,50-well,96-well,100-well,384-well
Mesh plate material
Anodized aluminium
Anti-static properties
Yes
Cleaning feature
Easy to clean

Custom Options


Mesh Plate Type
Exchangeable
Seed Type Compatibility
Over 100 seed types,including difficult types like Arabidopsis Thaliana
Container Compatibility
Plates,tubes,petri-dishes,germination trays
Grid Options
Standard from 24 to 384 well
Custom Parts Availability
Available upon request for unique seed types/amounts and non-standard containers
