96-channel ultra high throughput protein analysis

Accelerate your research and development with simultaneous high-throughput analysis of proteins, antibodies, and peptides, enabling rapid characterization and streamlined workflows without microfluidics, ensuring increased accuracy and reduced operational costs.

Performs Rapid Quantitation and Binding Analysis

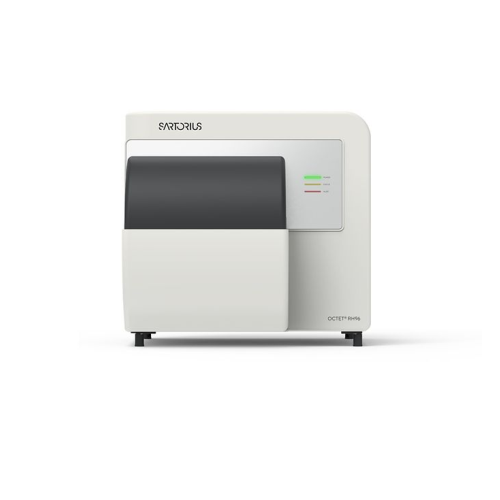

The Octet® RH96 from Sartorius is a cutting-edge biolayer interferometry system designed for high throughput analysis in pharmaceutical and biotech laboratories. This equipment excels in conducting rapid quantitation and binding experiments, using a microfluidics-free Dip and Read technology that minimizes maintenance while maximizing uptime. It is ideal for applications involving monoclonal antibodies, therapeutic proteins, and other biologic therapies, making it a crucial asset for biopharmaceutical development and research. The system can process up to 96 samples simultaneously, offering unparalleled speed and flexibility in assay automation and integration. Compatibility with standard 96- and 384-well plates allows for scalability and high processing capacity, crucial for time-sensitive R&D environments. With robotic compatibility, the Octet® RH96 facilitates seamless automation, reducing manual input and potential for human error. Its robust design and compliance with industry standards ensure reliable performance in demanding operational settings, while Sartorius provides comprehensive engineering support for custom configurations and integration into existing workflows.

Benefits

  • Expedites drug development with high throughput analysis, minimizing assay completion time.
  • Enhances data reliability with microfluidics-free operation, reducing maintenance and operational costs.
  • Facilitates seamless integration and scalability with automation and robotic compatibility.
  • Boosts productivity by simplifying workflow through automation-ready design, minimizing manual intervention.
  • Ensures industry compliance, supporting GMP standards for pharmaceutical manufacturing.

General


Applications
Cell culture supernatants,Proteins,Crude cell lysates,Antibodies,Biopharmaceuticals,Virus-like particles,Peptides
End products
Viral vaccines,Peptide-based drugs,Biologic therapies,Monoclonal antibodies,Cell culture-derived therapeutics,Diagnostic reagents,Therapeutic proteins
Steps before
Sample Preparation,Cell Culture,Protein Expression,Buffer Preparation
Steps after
Data Analysis,Quality Control,Protein Contaminant Testing,Report Generation
Input ingredients
protein samples,antibodies,peptides,serum containing media,DMSO buffers,virus-like particles,cell culture supernatants,crude cell lysates
Output ingredients
sensorgrams,epitope binning matrices,kinetic data,concentration data,binding rates,IgG quantitation,epitope binning analysis
Market info
Sartorius AG is renowned for manufacturing high-precision laboratory and bioprocess equipment. They specialize in filtration, fermentation, and cell cultivation systems, known for their innovation and reliability in the pharmaceutical and biotech industries.

Technical Specifications


Sample Volume
40–80 μL/well (384-well tilted bottom microplate),180–220 μL/well (96-well microplate)
Analysis Temperature
Ambient + 4°C to 40°C,in 1°C increments
Simultaneous Read Capacity
8,16,32,48,or 96 wells
Quantitation Range
32–96 biosensors
1.0–700 μg/mL at 400 rpm
Dissociation Rate Constant (kd)
10^-6 to 10^-1 s^-1
Association Rate Constant (ka)
10^1 to 10^7 M^-1s^-1
Affinity Constant (KD)
1 mM – 10 pM
Baseline Noise (RMS)
< 3 pm (8–16 biosensors)
< 8 pm (32–96 biosensors)
Baseline Drift
< 0.1 nm/hour
Detection Type
Label-free,Dip and Read format
Weight
200 lbs (90.7 kg)
Dimensions
30.1 in x 31.5 in x 31.5 in (77 cm x 80 cm x 80 cm)
Molecular Weight Detection
>150 Da (8–16 biosensors),>5000 Da (32–96 biosensors)
Automation
Robot compatible microplate and biosensor tray loading

Operating Characteristics


Automation level
Automation-ready and robot-compatible
Batch vs. continuous operation
Batch (96-well plate)
Cleaning method
Microfluidics-free Dip and Read
Energy efficiency
State-of-the-art high throughput
Changeover time
Streamlined workflows with automation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
30.1 in x 31.5 in x 31.5 in (77 cm x 80 cm x 80 cm)
Weight
200 lbs (90.7 kg)
Sample Type Compatibility
Proteins,antibodies,peptides,serum containing media,DMSO containing buffers,virus-like particles,untreated cell culture supernatants and crude cell lysates
Sample Plate
Standard,96-well and 384-well,black,tilted bottom microplates
Molecular Weight Detection
>150 Da (8–16 biosensors),>5000 Da (32–96 biosensors)

Custom Options


Control panel type
Automation-ready,robot-compatible
Integration possibilities
Microplate and biosensor tray loading
