Web processing platform for pharmaceuticals and medical products
Optimize your medical and pharmaceutical production with a versatile platform that integrates sealing, cutting, and inspection processes, enabling you to handle a range of products from transdermal patches to diagnostic test strips with precision and adaptability.
Processes Web Materials for Pharmaceuticals and Medical Devices

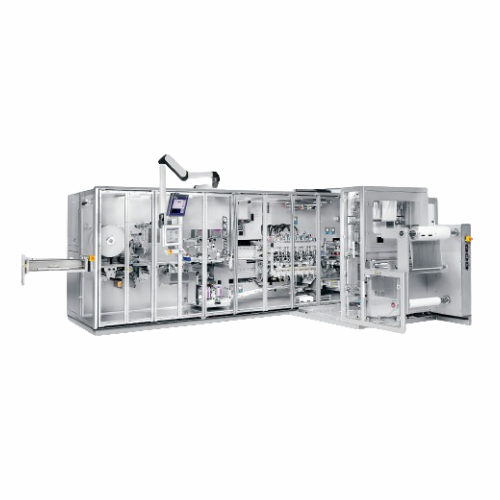

The PMK platform from Harro Höfliger is an adaptable web processing solution tailored for the pharmaceutical and medical device industries. It integrates core processes such as sealing, cutting, and punching into a modular framework, allowing for the production of transdermal therapeutic systems (TTS), oral dissolvable films (ODF), and diagnostic test strips. With flexible web tension adjustment and innovative film handling, the PMK ensures precision in product output with throughput reaching up to 750 products per minute. It supports web widths from 150 to 700 mm, catering to various production scales. Equipped with camera systems for rigorous quality inspection, the PMK platform aligns with GMP standards, facilitating seamless integration into existing production lines. It offers options for ultrasonic sealing, thermal and laser welding, and boasts a compact design for easy maintenance. Customizable technology modules further enhance its versatility, providing pharmaceutical manufacturers the capacity to efficiently shift between product variants.
Benefits
- Enhances production agility with modular design, allowing quick adaptation for different products.
- Optimizes resource use with integrated inspection systems, ensuring high-quality output.
- Increases operational efficiency through automated precision processes like sealing and punching.
- Supports scalable production with adjustable web widths up to 700 mm.
- Ensures regulatory compliance with GMP-compliant construction for pharmaceutical applications.
- Applications
- Oral dissolvable films,Classic dressing,Medical devices,Biosensors,Transdermal therapeutic systems,Medical products for wound dressings,Diagnostic test strips,Wound care products,Surgical sutures,Diagnostic products,Pharmaceuticals
- End products
- Tts patches for pain relief,Saliva glucose test strips,Tts patches for asthma,Surgical suture material packs,Diagnostic pregnancy test strips,Dissolvable allergy relief films,Caffeine odf strips,Reservoir nicotine patches,Cholesterol biosensor strips,Opioid tds reservoir patches,Matrix design hormone patches,Hydrocolloid wound dressings,Antihistamine tts patches,Adhesive bandages,Vitamin c odf strips
- Steps before
- Material preparation,Raw material feeding,Pre-cutting,Web handling setup
- Steps after
- Quality inspection,Packaging,Labelling,Product assembly
- Input ingredients
- web material,roll material,sensitive oral film strips,multi-layer materials
- Output ingredients
- oral dissolvable film (ODF),transdermal therapeutic systems (TTS),matrix patch,reservoir patch,diagnostic test strips,biosensors,medical products for dressing wounds
- Market info
- Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.
- Output (typical)
- 200-400 products per web and minute
- Output (maximum)
- 750 products per web and minute
- Common design
- 1-3 webs
- Web width
- 150-700mm
- Maximum webs possible
- 8 webs
- Modularity
- Freely configurable production platform
- Web tension
- Slight and variably adjustable
- Film handling
- Integrated
- Inspection processes
- Leak tightness,flow inspections,pressure,force,weight,torque measurements,overall functions testing
- Sealing technology
- Thermal,laser,ultrasonic
- Camera inspection
- Position and location accuracy inspection
- Film width for PMK 150
- Up to 150 mm
- Film width for PMK 300
- Up to 300 mm
- Film width for PMK 700
- Up to 700 mm
- Cutting capability
- Longitudinal and cross-cutting
- Sealing capability
- Four-edge sealing bags
- Punching tools
- Solid punching tools and die punching
- Welding processes
- Thermal,laser,ultrasonic
- Labeling and marking
- Includes inspection system
- Automation level
- PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Web tension control
- Variable
- Module replacement capability
- Available
- Film handling integration
- Integrated
- Inspection processes
- Leak tightness,flow,pressure measurements
- Sealing technology
- Thermal,laser,ultrasonic
- Changeover capability
- Easy retrofit
- Biological Compatibility
- Yes/No
- Cleanability
- High/Moderate/Low
- Corrosive Resistance
- High/Moderate/Low
- Density/Particle size
- 0.5–2.5 g/cm³
- Abrasion Resistance
- High/Moderate/Low
- Final product types
- ODF,TDS,TTS,diagnostic strips
- GMP Compliance
- Yes
- FDA Materials
- Yes
- Machine footprint
- PMK 150 - 150 mm width,PMK 300 - 300 mm width,PMK 700 - 700 mm width
- Modular design
- Freely configurable with replaceable modules
- Web width
- 150-700 mm
- Process platform
- Continuous web processing
- Control panel type
- Modular stations control
- Discharge method
- Web ejection and winding mechanisms
- Modular setup
- Choice of different stations
- Web width
- 150-700 mm
- Replaceable modules
- Easily retrofit for product variants
- Sealing technology
- Thermal,laser,ultrasonic
- Inspection systems
- Camera systems for quality inspection
- Integration possibilities
- Sealing,cutting,punching
