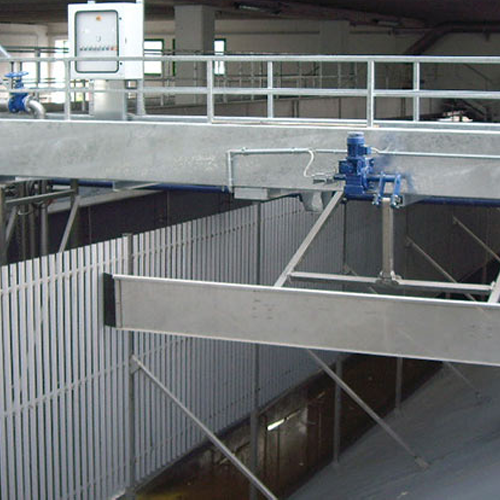

Travelling bridges for grease and grit removal in wastewater treatment

Ensure efficient grease and grit removal in wastewater treatment with travelling bridges, designed to optimize separation and streamline maintenance while enhancing overall process reliability.

Removes Grease and Grit from Wastewater

The Travelling Bridges for Grease and Grit Removal PVA, brought to you by WAMGROUP, offer a robust solution for municipal and industrial wastewater treatment facilities. This equipment distinguishes itself by incorporating a movable truck mechanism equipped with a surface scraper and an immersed pump, enabling efficient grease and grit separation. The bridge operates using a centrally driven gearbox, transporting settled grit to collection hoppers and guiding scum into grease channels through a seamless back-and-forth motion. Ideal for applications ranging from pulp and paper processing to tannery waste management, this system ensures the production of clarified water and dewatered sludge. Designed for tanks up to 50 meters long, it features hot dip-galvanized carbon steel or stainless steel construction for enhanced durability. With options for grit suction via air lift and adaptable to existing infrastructure, it supports customization needs while facilitating ease of maintenance.

Benefits

  • Enhances wastewater quality by effectively separating grease and grit.
  • Reduces operational costs with low maintenance requirements.
  • Facilitates quick installation in both new and existing tanks.
  • Offers flexibility with material options for corrosion resistance.
  • Supports environmental compliance with efficient scum and sludge removal.

General


Applications
Animal by-products handling,Industrial solid waste handling,Processing,Sludge treatment,Treatment,Clean water treatment,Municipal wastewater treatment,Environmental technology,Pulp,Paper processing,Industrial wastewater treatment,Dyeing works,Tanneries
End products
Dyed textiles,Reclaimed water,Processed animal fats,Pulp fiber residue,Tanned leather,Dewatered sludge,Clarified water,Solid waste derivatives,Treated industrial effluent
Steps before
Screening,Initial sedimentation,Pre-treatment
Steps after
Final sedimentation,Disinfection,Sludge treatment
Input ingredients
wastewater,municipal wastewater,industrial wastewater,grease,grit,organic particles,floating particles
Output ingredients
removed grease,removed grit,scum,cleaner wastewater
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Tank Width
Up to 8m
Tank Length
Up to 50m
Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Operation
Back and forth travelling
Installation
Quick installation
Automation
Central gearbox connected
Material Options
Alternative voltage and frequency
Alternative Motor Protection
Alternative degree available

Operating Characteristics


Working mechanism
Movable truck with traction trolleys
Integrated steps
Grit settling and grease collection
Automation level
Central gearbox with trolley drive wheels
Batch vs. continuous operation
Continuous back and forth travel
Cleaning method
Manual via surface scraper and immerged pump
Energy efficiency
High efficiency grit and grease removal
Installation ease
Quick installation into existing tanks
Maintenance requirements
Low maintenance costs
Material Flow
Grit conveyed via bottom scraper
Control mechanism
Festooned cables and control panel

Material Compatibility


Density/particle size compatibility
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank Size
Up to 8m wide and 50m long
Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Discharge Method
Surface scraper and immerged pump
Control Panel Type
Available
Travel System
Rails or wheels

Custom Options


Travelling system type
Rails/Wheels
Material
304 L / 316 L SS / Painting
Voltage and frequency
Alternative options available
Degree of motor protection
Alternative options available
Grit suction method
Air lift
Cable holding method
Chain
Wall material
Stainless steel for grease and grit channel dividing wall
