Shielded laminar flow isolator for radiopharmaceuticals

Ensure precise handling and shielding of sensitive radiopharmaceuticals with this advanced solution, ideal for maintaining safe operations and protecting technicians from radiation exposure during preparation and dispensing processes.

Handles, Dispenses, and Calibrates Radiopharmaceuticals

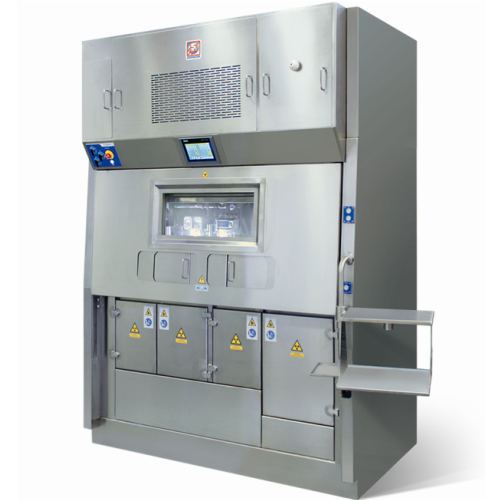

The ELIZA Series from Comecer is a shielded laminar flow isolator designed for precise handling of radiopharmaceuticals used in nuclear medicine and metabolic radiotherapy. This equipment is unique for its integration of dose calibrators and fractionation systems, optimizing the dispensing and material transfer of critical isotopes like FDG, Lutetium-177, and Iodine-131. It maintains sterility through a Class A laminar flow workspace, while radiation shielding ensures operator safety. The isolator can be configured for continuous manual operation and supports automatic modules for high-speed processing. Manufactured with AISI 316L stainless steel, it offers robust material integrity and is cGMP-compliant for pharmaceutical environments. Integrated waste collection systems and modulating valve pressure adjustments enhance safety and workflow efficiency, making it ideal for pharmaceutical manufacturers and nuclear medicine departments.

Benefits

  • Enhances safety with comprehensive radiation shielding, protecting operators during radiopharmaceutical handling.
  • Ensures compliance with cGMP standards, facilitating safe pharmaceutical manufacturing.
  • Streamlines operations with integrated dose calibrators and fractionation systems, improving workflow efficiency.
  • Offers versatile adaptability for various isotopes, making it suitable for diverse nuclear medicine applications.
  • Simplifies maintenance with durable AISI 316L stainless steel construction, guaranteeing long-term reliability.

General


Applications
Nuclear medicine products,Metabolic radiotherapy drugs,Radiopharmaceuticals
End products
Samarium-153,Yttrium-90,Strontium-89,Lutetium-177,Iodine-131,Technetium-99m,Fludeoxyglucose (fdg)
Steps before
Material Preparation,Calibration,Radiopharmaceutical Synthesis
Steps after
Dose Dispensing,Radiopharmaceutical Fractionation,Waste Management
Input ingredients
beta/gamma-emitting radiopharmaceuticals,technical gases,generators,syringes,vials
Output ingredients
calibrated doses,waste,prepared radiopharmaceuticals
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Touch screen
Available for hot cell and dispensing system
Material
AISI 316L stainless steel
Gases supply lines
Equipped with ball shut-off valves
Filter leakage test
DOP test connections
Internal pressure control
Automatic adjustment by modulating valves
Dose calibrator
Available in 2 Ci or 20 Ci versions
Waste collection system
Solid waste collection system
Compliance
cGMP compliant
Air-lock
Material introduction air-lock
Dispensing chamber
Included
Generator shielded compartment
Included
Material transfer compartment
Lower material transfer compartment
Syringes dose calibrator
Available
Radiation shielding
Equipped with plastic supports for beta-emitting isotopes
Work chamber
Laminar flow work chamber
Ventilated pre-chambers
For material transit
Operator panel
Modern operator panel for parameter control

Operating Characteristics


Touch screen operation
Yes
Internal pressure adjustment
Automatic by modulating valves
Air-lock for material introduction
Included
Automation level
PLC-controlled
Sterility
Laminar air flow Class A
Radiation protection
Shielded for full operator protection
Management of critical parameters
Modern operator panel


GMP Compliance
cGMP
EEC-cGMP Classification
Class A/B

Physical Characteristics


Main Chamber Size
Designed for automatic modules or fractionation systems
Material Transfer Tray
Included
Shielding Thickness
Compatible with metabolic radiotherapy
Touch Screen
Hot cell and dispensing system control
Technical Gases Supply Lines Material
AISI 316L stainless steel
Door Lock System
Internal double probe G.M. detector controlled
Internal Pressure Adjustment
Automatic with modulating valves
Solid Waste Collection System
Included
Air-Lock for Material Introduction
Available

Custom Options


Control panel type
Touch screen console
Integration possibilities
Automatic synthesis modules or fractionators installation
Technical gases supply materials
AISI 316L stainless steel
Shielding spacers
Different thickness options
