Serialisation solution for pharmaceutical folding boxes

Ensure seamless coding and serialisation of flat cardboard blanks in folding box production, achieving precise print verification and reliable rejection of faulty items for enhanced pharmaceutical packaging quality control.

Serialises and Inspects Pharmaceutical Carton Blanks

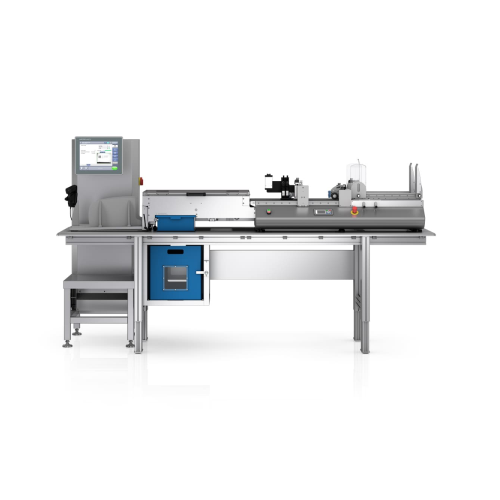

The TQS-SP flat boxes from Wipotec is a specialised serialisation system designed for the pharmaceutical industry’s coding and verification of flat cardboard blanks. Uniquely tailored for offline operation, it streamlines the serialisation of small to medium batch sizes, ensuring precise coding and product inspection. With a high throughput of up to 250 blanks per minute, the TQS-SP efficiently handles medicine blister packs, tablet packaging, and other pharmaceutical cartons. Its all-in-one operating concept simplifies integration, requiring no on-site effort, and uses Wipotec’s ConfigureFast cross-system interface to manage layout, transport, and printing systems seamlessly. This unit includes a full-surface optical print verification, rejecting faulty products to maintain 100% accuracy. The TQS-SP supports GMP compliance, ensuring safety and quality in packaging processes while providing quick format changes and reliable transport systems, making it ideal for dynamic production environments.

Benefits

  • Ensures precise coding and serialisation, minimizing errors and compliance risks.
  • Increases efficiency with high-speed processing of up to 250 blanks per minute.
  • Reduces integration efforts with a plug-and-play design for immediate deployment.
  • Streamlines product changeovers with a quick, stepless format conversion system.
  • Maintains high-quality standards with 100% optical verification and fault rejection.

General


Applications
Folding boxes,Pharmaceutical packaging,Carton blanks
End products
Capsule cartons,Flat-packed pharmaceutical cartons,Prescription folding boxes,Tablet packaging,Medicine blister packs,Over-the-counter drug packaging
Steps before
Pre-production of cardboard blanks,Folding box creation,Printing preparation
Steps after
Packing of serialised boxes,Product inspection,Pharmaceutical distribution
Input ingredients
flat cardboard blanks,non erected cartons,folding boxes for pharmaceuticals
Output ingredients
serialised cardboard blanks,printed folding boxes,successfully serialised cartons
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Speed
Up to 250 cardboard blanks/min
Format Width
Up to 372 millimetres
Automation
Centralised serialisation without on-site integration
Display Size
15” touchscreen (19” optional)
Printing System
TQS-InkPrint with full-surface optical print verification

Operating Characteristics


Changeover time
Short changeover times
Batch vs. continuous operation
Batch
Setup convenience
Convenient set-up
Intuitive control
Touchscreen display with intuitive control menu
Transport system
Specially developed transport system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Cardboard Blanks Dimensions
Up to 372 mm width

Physical Characteristics


Transport system
Specially developed for non-erected cartons
Screen display size
15” touch screen,19” optional
Format width
Up to 372 millimetres
Stepless format conversion
Yes

Custom Options


Control panel type
15” touchscreen display (19” optional)
Integration possibilities
No on-site integration effort required
Product range adaptability
Stepless format conversion up to 372 mm width
