Sand and grit classifier for wastewater treatment

Achieve high-efficiency sand and grit removal from wastewater streams, ensuring optimal performance of treatment processes and reducing wear on downstream equipment.

Separates and Dewaters Grit and Sand

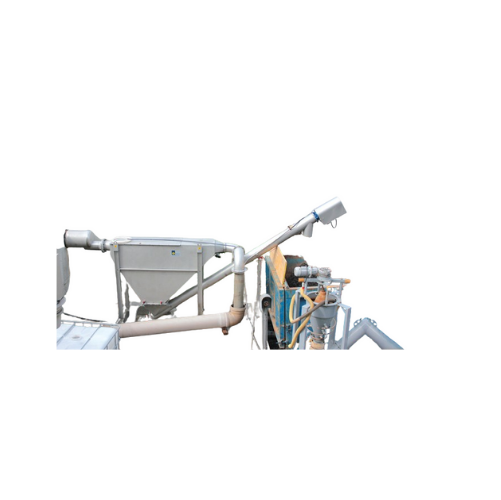

The GRITSEP FGC Fluid Dynamic Grit Classifier from WAMGROUP is designed to optimize your wastewater treatment process by efficiently separating, extracting, and dewatering grit and sand. Its compact design incorporates a decanting tank, grit and sand extracting screw, and a self-cleaning drainage module, engineered for seamless on-site assembly and low maintenance. Ideal for municipal and industrial wastewater treatment, it achieves a 95% sand removal rate, producing sand-free effluent and dewatered sludge. The classifier features durable, heavy-duty shaftless screws made from SINT engineering polymer for lasting performance. It supports continuous, automated operations, easily integrates into existing systems, and offers customization options such as alternative motor protections and control panels. Designed with cost efficiency in mind, it reduces transportation, installation, and energy costs, thanks to its low drive power requirement and small footprint.

Benefits

  • Achieves 95% sand removal, ensuring cleaner effluent and less wear on downstream equipment.
  • Minimizes operational costs with efficient on-site assembly and reduced maintenance requirements.
  • Enhances system durability through heavy-duty, shaftless screws made from SINT engineering polymer.
  • Supports continuous, automated operations, reducing the need for manual intervention.
  • Compact design lowers installation footprint, ideal for facilities with space constraints.

General


Applications
Sludge treatment,Environmental technology,Industrial waste water treatment,Municipal waste water treatment
End products
Dewatered sludge,Separated grit,Treated wastewater,Sand-free effluent,Cleaned industrial effluent
Steps before
Screening,Primary Sedimentation
Steps after
De-watering,Sludge Treatment,Disposal
Input ingredients
waste water,sand,grit,residual solids
Output ingredients
separated sand,separated grit,de-watered solids
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Sand separation size
≥ 200 μm
Bulk density range
2.60 to 2.65 kg/dm3
Installed drive power
Low
Sand removal rate
95%
Footprint
Compact
Automation
Alternative voltage and frequency
Self-cleaning drainage module
Yes
Tank construction
Fully welded
Sand sensor
Available as an option
Anti-wear system
Tank anti-wear

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Continuous
Energy efficiency
Low power consumption
Cleaning method
Self-cleaning
Footprint
Compact
Sand removal efficiency
95%

Material Compatibility


Abrasion resistance
High
Biological compatibility
N/A
Cleanability
Self-cleaning drainage module
Corrosive resistance (e.g. acids)
SINT engineering polymer
Density/particle size
2.60 to 2.65 kg/dm3

Product type Characteristics


Footprint
Compact

Physical Characteristics


Compact footprint
Yes
Tank shape
Fully welded
Discharge method
Screw extraction
Self-cleaning
Drainage module
Screw type
Shaftless

Custom Options


Control panel type
Alternative voltage and frequency
Motor protection degree
Alternative degree of motor protection
Tank anti-wear system
Yes
Outlet
Customizable
Sand sensor
Available
Air injection
Available
De-gasing tank
Available
Pipe washing system
Available
