Pomegranate peeling and seed separating system

Streamline your pomegranate juice and wine production with a system that efficiently peels and separates seeds, minimizing seed damage and tannin content, ensuring high-quality results.

Peels and Extracts Pomegranate Seeds Efficiently

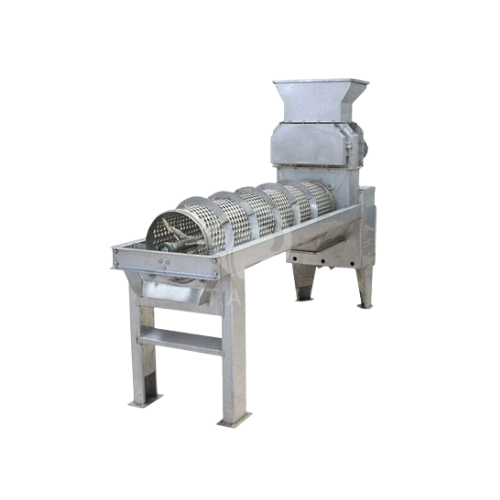

The Pomegranate Peeling Machine from Taizy Machinery revolutionizes how pomegranate seeds are extracted for beverage and liquor industries. It performs a multi-stage process of peeling, crushing, and separating, allowing continuous operation and minimal seed damage. Designed primarily for producing pomegranate juice, concentrate, wine, and cider, this machinery is integral in pre-processing and processing departments. Handling up to 1000 kg/h, it employs frequency conversion control to optimize motor speed and ensure efficient energy use. Crafted from 304 stainless steel, it offers excellent corrosion resistance, ensuring longevity in industrial environments. Equipped with a comprehensive electrical control cabinet, this machine facilitates automated operations, enhancing integration within existing production lines. The Pomegranate Peeling Machine requires minimal maintenance, thanks to its easy-to-clean design and robust components, making it a reliable choice for large-scale production of high-quality pomegranate products.

Benefits

  • Enhances production efficiency with continuous, automated peeling and seed extraction.
  • Preserves juice quality by minimizing seed damage, preventing bitterness.
  • Reduces operational costs through adjustable frequency conversion control for optimal motor performance.
  • Provides long service life with corrosion-resistant 304 stainless steel construction.
  • Ensures worker safety with protective covers and easy-to-operate controls.

General


Applications
Pomegranate wine production,Liquor processing,Beverage processing,Fruit juice production
End products
Pomegranate cider,Pomegranate juice,Pomegranate wine,Pomegranate cocktail mixers,Pomegranate-flavored beverages,Pomegranate concentrate
Steps before
Sorting,Adjusting roller gap,Confirming size similarity
Steps after
Juicing,Cleaning,Removing residue
Input ingredients
whole pomegranates,fresh pomegranates
Output ingredients
clean pomegranate seeds,pomegranate husks,pomegranate juice
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
1000 kg/h
Diameter of Rotating Screen
340 mm
Power of Gear Motor
2.2 KW
Power of Crushing Motor
1.1 KW
Rotation Speed of Crushing Device
60 r/min
Maximum Speed of Separation Shaft
350 r/min
Maximum Speed of Separation Rotation Screen
9.2 r/min
Machine Weight
900 kg
Machine Dimension
2600×650×1760 mm
Material
304 stainless steel
Gap Between Crushing Rollers
22-30 mm
Gap Between Separation Shaft and Rotating Screen
13-16 mm

Operating Characteristics


Working Mechanism
Pomegranate seed extraction via crushing and separation
Integrated Steps
Peeling,crushing,and seed separating
Batch vs. Continuous Operation
Continuous
Automation Level
Manual / PLC controlled
Adjustable Roller Gap
22-30 mm
Adjustable Speed
Frequency conversion control

Material Compatibility


Abrasion resistance
Adjustable crushing roller gap for minimal seed damage
Biological compatibility
Food-grade stainless steel components
Cleanability
Stainless steel construction allows for easy cleaning
Corrosive resistance (e.g. acids)
304 stainless steel
Density/particle size
Suitable for pomegranate seeds within certain size limits

Product type Characteristics


Pomegranate compatibility
Yes

Physical Characteristics


Machine Footprint
2600×650×1760 mm
Weight
900 Kg
Capacity
1000- Kg/h
Material
304 Stainless Steel
Gap Between Crushing Rollers
22-30 mm
Feed Method
Hoist or Manual
Discharge Method
Through Separation Device

Custom Options


Control panel type
Frequency conversion control
Rotation speed adjustment
Yes,via electric control cabinet
Gap adjustment
Roller gap 22-30mm adjustable
