Laboratory chamber furnace for thermogravimetric analysis

Optimize your material analysis with precise thermogravimetric and combustion capabilities, ensuring accurate weight change monitoring during heating processes for reliable insights into material composition and quality.

Conducts Precise Thermogravimetric Analysis

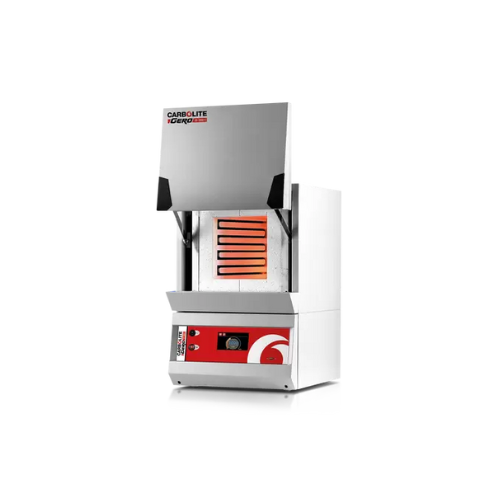

The CWF Laboratory Chamber Furnace from Carbolite Gero is engineered for precise thermogravimetric analysis in research laboratories and industrial settings. Featuring a vertical lift door design, this furnace prevents heat exposure to users while optimizing safety and accessibility. Operating at a maximum temperature of 1300°C, it is suitable for applications including the assessment of inorganic materials such as cement, lime, and refractories, as well as organic materials like biochar and activated charcoal.

The CWF range integrates advanced temperature control with the Carbolite Gero 301 or 3216CC controller, offering single-ramp to set-point with process timers for precise thermal processing. Enhanced with an efficient airflow system via a tall chimney and air inlets, the furnace ensures rapid fume extraction and effective sample combustion.

Able to accommodate chamber volumes from 5 to 65 litres, and equipped with free-radiating wire-wound elements, this furnace achieves superior heating uniformity while minimizing energy consumption due to its low thermal mass insulation. The CWF-BAL variation additionally integrates a balance for real-time weight monitoring, crucial for applications like loss on ignition (LOI) studies, with logging capabilities via proprietary software.

Customization is supported with options such as modified atmosphere operation using metallic retorts and multiple balance capacity options. Designed to comply with standards like AMS2750F (Nadcap), the CWF series facilitates integration into existing lab setups, ensuring robust and reliable operation for rigorous materials testing and analysis.

Benefits

  • Enhances analysis accuracy through precise temperature control and real-time weight monitoring.
  • Improves safety with user-friendly design preventing exposure to hot surfaces.
  • Minimizes sample processing time with efficient fume extraction and uniform heating.
  • Reduces energy consumption with low thermal mass insulation technology.
  • Adapts to varied applications with customizable options for atmospheric conditions and monitoring capabilities.

General


Applications
Lime,Calcinated bauxite,Refractories,Organic materials,Inorganic materials,Cement
End products
Biochar,Ceramic tiles,Firebricks,Activated charcoal,Portland cement,Aluminum oxide,Quicklime
Steps before
Sample preparation,Weighing,Material selection,Placement of sample in furnace
Steps after
Thermogravimetric analysis,Loss on ignition,Cooling,Data logging
Input ingredients
inorganic matter,organic matter,cement,lime,calcinated bauxite,refractories
Output ingredients
thermogravimetric analysis,loss on ignition,inorganic matter content determination
Market info
Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.

Technical Specifications


Maximum Operating Temperature
1100°C,1200°C or 1300°C
Chamber Volume
5,13,23,36 or 65 litres
Controller Type
Carbolite Gero 301,3216CC
Temperature Control
Single ramp to set-point,process timer
Door Type
Vertical lift,Soft closing
Balance Capacity
3 kg with a resolution of 0.01 g
8 kg with a resolution of 0.1 g
Energy Efficiency
Low thermal mass insulation
Element Type
Free radiating wire wound
Airflow Enhancement
Enhanced airflow from tall chimney,door vents
Over-temperature Protection
Included
Metallic Retorts
Up to 1150°C for modified atmospheres
AMS2750F Compliance
Bespoke specifications available
Software Capability
Monitor balance reading via computer

Operating Characteristics


Maximum Operating Temperature
1100°C,1200°C,1300°C
Chamber Volume
5,13,23,36,65 litres
Automation Level
Manual / Full automation
Airflow
Enhanced airflow from chimney,door vents
Energy Efficiency
Low thermal mass insulation
Door Type
Vertical lift door / Soft closing
Balance Functionality
Integrated balance for TGA,LOI
Delayed Start/Process Timer
Available

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Bench mounted
Chamber volume
5,13,23,36,or 65 litre
Vertical lift door
Yes
Soft closing door
Applicable to 5,13,21,,23 litre models
Door vents
For airflow enhancement
Tall chimney
For enhanced airflow

Custom Options


Control panel type
Carbolite Gero301 or 3216CC controller
Integration possibilities
Digital communication options
Chamber volume options
5,13,23,36,or 65 litre
Door type
Vertical lift door / Soft closing door
Customization for compliance
AMS2750F (Nadcap) compliant
Balance integration
Integrated balance for CWF-BAL model
Modified atmosphere capability
Metallic retorts up to 1150°C
