Jaw crusher for large feed sizes with high throughput

Handle large feed sizes with a jaw crusher that offers a robust solution for high-throughput material reduction, ideal for demanding pre-crushing tasks across diverse applications.

Crushes and Reduces Size of Tough Materials

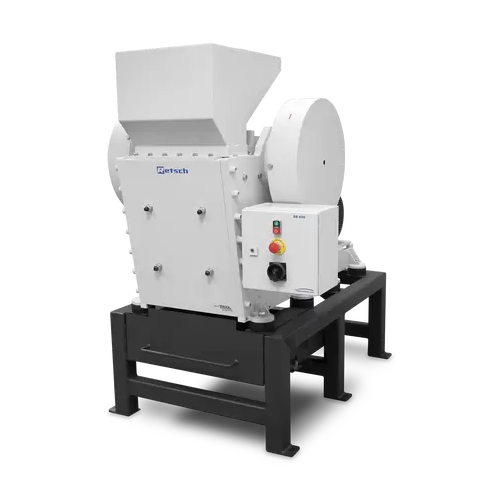

The Jaw Crusher BB 600 XL from Retsch is a robust solution tailored for demanding pre-crushing operations in various industries. Designed with a wedge-shaped crushing chamber, it efficiently grinds medium-hard to hard, brittle, and tough materials, including ores, ceramics, and construction materials, achieving particle sizes as fine as 6 mm. Ideal for applications that require batch or continuous processing, it accommodates large feed dimensions up to 350 x 170 mm, boasting a throughput capacity of up to 3,500 kg/h. Equipped with a stepless gap width setting from 6 to 60 mm, it offers precision in size reduction. This crusher integrates seamlessly into existing production lines thanks to its compact design and optional process line version, fitting in installations with limited space. Constructed with materials like manganese steel and NiHard4, it ensures durability and optional heavy-metal-free grinding. The BB 600 XL’s ergonomic features include overload protection, a 30-liter collecting receptacle, a removable hopper with splash-back protection, and no-rebound hopper for safe operation. Additionally, it operates with a 15 kW three-phase motor, supporting various voltages and complying with CE standards for industrial safety requirements, making it a reliable choice for construction materials manufacturers, mining companies, and metallurgical industries.

Benefits

  • Enhances productivity with a high throughput of up to 3,500 kg/h.
  • Facilitates integration into compact production spaces with its low installation height.
  • Minimizes material contamination with options for heavy-metal-free grinding.
  • Increases operational efficiency with a continuous gap width setting.
  • Ensures operator safety with overload protection and splash-back prevention features.

General


Applications
Ceramics,Construction materials,Cement clinker,Ores,Metals,Industrial minerals,Coal,Quartz,Meteorites,Tungsten alloys,Graphite,Slag
End products
Pulverized cement powder,Processed iron ore,Refined industrial minerals,Graphite electrodes,Steel production slag,Reduced quartz granules,Crushed granite,Coal briquettes,Tungsten carbide tools,Meteorite fragments
Steps before
Crushing,Grinding,Material Preparation
Steps after
Sampling,Material Analysis,Further Size Reduction
Input ingredients
construction materials,ores,granite,oxide ceramics,quartz,slag,silicon,coal,tungsten alloys,cement clinker,meteorite,sinter cake,graphite electrode,cement drill core
Output ingredients
crushed materials,particle sizes down to 6 mm
Market info
Retsch is renowned for manufacturing high-quality laboratory equipment, specializing in milling, sieving, and assisting technologies for sample preparation and characterization, known for precision, reliability, and innovation in the scientific and industrial laboratory markets.

Technical Specifications


Feed size
< 350 x 170 mm
Gap width setting
6 - 60 mm
Final fineness
< 6 mm
Throughput
up to 3500 kg/h
Jaw width
400 x 240 mm
Drive power
15 kW
Material of grinding tools
manganese steel,NiHard4
Collector capacity
30 l
Electrical supply data
different voltages
Protection code
IP 55
W x H x D closed
925 x 1600 x 1370 mm
Net weight
~ 1350 kg

Operating Characteristics


Working Mechanism
Pressure and Eccentric Drive Shaft
Batch vs. Continuous Operation
Batch / Inline Continuous
Automation Level
Manual / PLC
Gap Width Setting
Stepless 6 - 60 mm
Cleaning Method
Manual

Material Compatibility


Abrasion resistance
Manganese steel
Density/particle size
Hard,brittle,tough
Material type
Construction materials,ores,granite,oxide ceramics,quartz,slag,silicon,coal,tungsten alloys,cement clinker

Physical Characteristics


Machine footprint
925 x 1600 x 1370 mm
Feed method
No-rebound hopper
Discharge method
Removable collector / conveyor belt
Jaw width
400 x 240 mm
Collector capacity
30 l

Custom Options


Gap width setting
Stepless 6 - 60 mm
Jaw material options
Manganese steel,steel for heavy-metal-free grinding,NiHard4 steel
Discharge method
Removable collector or conveyor belt integration
Process line version
Optional
