Industrial paint robot for high-precision painting
Achieve superior surface finishing with precise, automated paint application, reducing waste and ensuring consistent coverage for complex geometries across a variety of high-demand products.
Automates Precision Painting on Industrial Surfaces

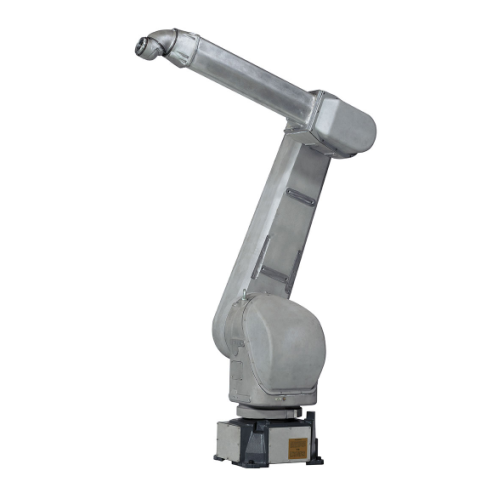

The FANUC Robot series, including models P-40iA, P-350iA, P-250iB, and P-1000iA, provides high-precision painting solutions for various industrial applications. These robots excel in automating coating processes on automotive body panels, household appliances, aerospace components, and more. With robust six to seven-axis control, they ensure precise and consistent coverage, adapting to your production needs whether installed on the floor, ceiling, or wall. The R-30iB Plus controller facilitates seamless integration with existing manufacturing lines, offering high-speed operations and continuous processing. Engineered for efficiency, these robots optimize energy use while maintaining superior repeatability, ultimately enhancing throughput in automotive, aerospace, and broader industrial sectors.
Benefits
- Enhances efficiency with precise, automated painting, reducing labor costs.
- Increases production speed and consistency, minimizing errors in coatings.
- Offers versatile installation options, optimizing factory space utilization.
- Lowers energy consumption with intelligent motor controls.
- Facilitates integration with existing systems through advanced controller compatibility.
- Applications
- Painting
- End products
- Furniture surfaces, Automotive body panels, Aerospace components, Consumer electronics enclosures, Household appliances casings
- Steps before
- Surface preparation, Masking, Cleaning, Pre-treatment
- Steps after
- Curing, Inspection, Drying, Finishing
- Input ingredients
- Output ingredients
- Market info
- FANUC is renowned for its expertise in automation, specializing in manufacturing industrial robots, CNC systems, and machine tools, with a strong reputation for reliability and innovation in industrial automation solutions.
- Controlled axes
- 6
- Max. payload at wrist
- 5kg, 45kg, 15kg, 10kg/15kg (depending on model)
- Motion range (X,Y)
- 1300mm, 2308mm
- 2606mm,4575mm
- 2800mm,5272mm
- 3396mm,4391mm (Metal Arm)
- 3348mm,4343mm (Plastic Arm)
- Repeatability
- ±0.03mm, ±0.06mm, ±0.2mm, ±0.5mm
- Mass
- 110kg, 590kg, 530kg, 700kg
- Installation
- Floor, Ceiling, Wall, Rack, Angle (varies by model)
- Matching controller
- R-30iB Mate Plus, R-30iB Plus (A-cabinet)
- Application
- Painting
- Control axes
- 6-axis / 7-axis
- Max Payload at Wrist
- 5kg / 45kg / 15kg / 10-15kg
- Motion Range (X,Y)
- 1300mm, 2308mm / 2606mm, 4575mm / 2800mm, 5272mm / 3396mm, 4391mm
- Installation Options
- Floor, Ceiling, Wall, Rack, Angle
- Repeatability
- ±0.03mm / ±0.06mm / ±0.2mm / ±0.5mm
- Automation Level
- Controlled by R-30iB Plus Controller
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Application
- Painting
- Installation method
- Floor, Ceiling, Wall, Rack, Angle
- Matching controller
- R-30iB Mate Plus, R-30iB Plus (A-cabinet)
- Installation options
- Floor, Ceiling, Wall, Rack, Angle
- Matching controller type
- R-30iB Mate Plus, R-30iB Plus (A-cabinet)
