High-speed vertical cartoner for bottles and jars

Streamline your cartoning process with a continuous motion system designed to ensure precise erection and closure for various packaging materials, boosting efficiency and reducing the need for skilled technicians during changeovers.

Erects and Seals Cartons for Bottles and Jars

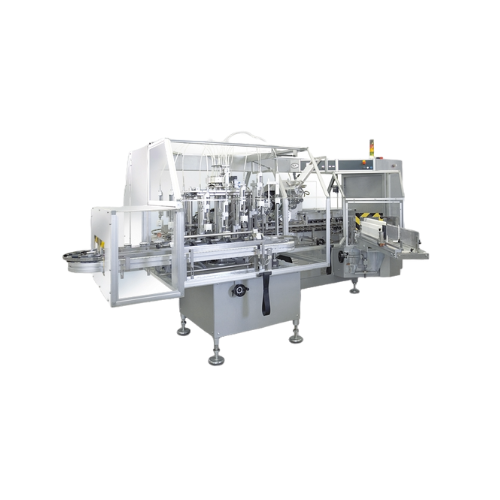

The AVC High-Speed Vertical Cartoner from CAM is engineered to address the demanding needs of pharmaceutical and consumer goods manufacturers. Featuring a robust construction and closed-profile cams, the AVC ensures reliable, high-speed continuous motion for precise cartoning processes. Its standout feature, a patented 4-station turret system, guarantees comprehensive carton pre-breaking and precision erection even with varying board grammage. Designed to accommodate a wide array of product feeders, the AVC is adept at handling diverse packaging requirements, making it particularly suited for pill bottles, medicine vials, and nutritional supplement containers.

This machine integrates seamlessly into existing production lines, offering a high-endurance motorized carton magazine and a groundbreaking carton closure system. It allows for quick, tool-free format changes in under 10 minutes thanks to CAM’s Mechanical Memory® system, minimizing downtime and enhancing productivity. With its capability to ensure consistent quality and efficiency, the AVC cartoner is an ideal solution for operations prioritizing speed, accuracy, and adaptability in their packaging processes.

Benefits

  • Maximizes production speed with seamless carton erection and precise closure.
  • Reduces maintenance costs and extends equipment life with durable housing and hardened cam surfaces.
  • Streamlines packaging for various bottle and jar formats, enhancing versatility and operational flexibility.
  • Minimizes changeover time to under 10 minutes, boosting overall line efficiency.
  • Ensures consistent packaging quality, eliminating the need for expert adjustments during format changes.

General


Applications
Jars,Bottles,Packaging materials,Pharmaceutical products
End products
Liquid medicine bottles,Pill bottles,Packaging cartons for bottles,Nutritional supplement containers,Blister packs,Supplement jars,Medicine vials,Packaging cartons for pharmaceuticals,Packaging cartons for jars
Steps before
Product Sorting,Product Feeding,Labeling
Steps after
Carton Sealing,Quality Inspection,Palletizing
Input ingredients
bottles,jars,cartons,product feeders
Output ingredients
packaged bottles,packaged jars,packaged cartons
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Machine speed
Medium-high speed
Carton erection system
4-station turret
Carton pick-off speed
Zero speed
Carton pre-breaking time
Longer than machine cycle
Carton opening mechanism
Suction-cup arms
Carton magazine type
Motorized
Changeover time
Less than 10 minutes
Size change-over system
Mechanical Memory® system
Product orientation
Vertical introduction
Automation
Closed-profile cam control

Operating Characteristics


Working mechanism
Continuous motion
Automation level
High-endurance motorized
Changeover time
Less than 10 minutes
Carton erection
4-station turret system
Carton closure system
Recent patent,no fine-tuning required
Product handling orientation
Vertical

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Carton type
Bottles/Jars
Carton orientation
Vertical
Carton forming
Pre-breaking,Multi-station
Product handling
Delicate / Fragile

Physical Characteristics


Discharge method
Vertical positioning
Carton erection system
4-station turret
Suction-cup arms
For positive opening
Motorized carton magazine
High-endurance
Cartoner Structure
Heavy-duty

Custom Options


Control panel type
HMI/PLC
Integration possibilities
Compatible with existing production lines
Format change capabilities
Tool-free,rapid changeover
Carton closure system
Patented system for easy size change-over
Carton style options
Multiple styles accommodated
Memory system
Mechanical Memory® for rapid changeover
Motorized carton magazine
High-endurance,customizable capacity
Product feeder options
Multiple feeders for different products
