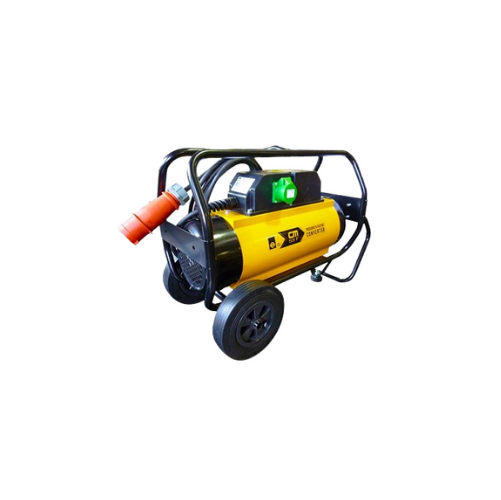

Frequency and voltage converter for concrete vibrators
In construction and precast concrete production, powering high-frequency concrete vibrators continuously is crucial. Conventional power sources may overheat or fail, affecting the quality and timing of concrete consolidation.
Ensure continuous power for vibrators
The CM-Converters from WAMGROUP provide a reliable solution designed specifically for continuous duty powering of high-frequency concrete vibrators. Equipped with permanent magnets, these converters reduce single-phase (230 V) or three-phase (400 V) input voltage to below 50 V while increasing frequency to 200 Hz. This ensures optimal operation and safety. The units are maintenance-free due to their innovative design and high-quality materials. Available with 1 to 4 outputs, they allow multiple vibrators to be connected simultaneously. Features include robust aluminium casing, forced ventilation, and overload protection, making them suitable for demanding environments.
Benefits
- Maintenance-free operation
- No overheating
- Optimal cooling for continuous use
- Easy cleaning and robust design
- Supports multiple vibrators simultaneously
