Continuous-motion labeling and assembly for syringes

Optimize syringe production with modular systems that streamline assembly, labeling, and inspection processes, enhancing output efficiency and ensuring compliance with stringent quality standards.

Labels and Assembles Disposable Syringes

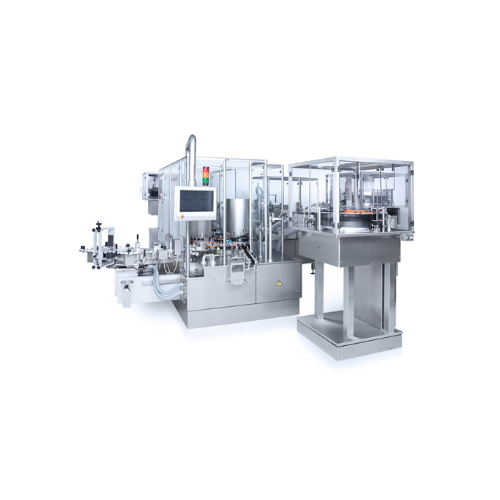

The SME Series from Bausch+Ströbel offers precision-engineered machines for the efficient labeling and assembly of disposable syringes. This compact, continuous-motion system features a modular design, allowing you to adapt and expand your setup as production demands evolve. Equipped with a basic module for applying self-adhesive labels and inserting plunger rods without pressure, the SME Series ensures reliable and high-quality construction of glass or plastic syringes. Designed for applications in pharmaceuticals and medical devices, this series handles a range of syringe types, including safety and prefilled syringes, at impressive speeds of up to 36,000 items per hour. A centralized operation system and short setup time enhance efficiency and ease of use, while options like vision systems and various label printers ensure process reliability and quality control. Fully customizable with extensions and extras for safety enhancements, this solution integrates seamlessly into your existing line, supporting efficient upstream and downstream connectivity. The SME Series complies with industry standards, offering sophisticated inspection, rejection, and maintenance features tailored to meet stringent pharmaceutical requirements.

Benefits

  • Enhances production efficiency with high-speed continuous motion, processing up to 36,000 syringes per hour.
  • Ensures process reliability through integrated camera-based inspection systems, reducing errors and defects.
  • Offers flexibility and scalability with modular design, allowing for easy expansion as production needs grow.
  • Minimizes setup time and labor with easy operation and quick change-over features.
  • Supports stringent quality control with 100% label inspection and automatic reject discharge systems.

General


Applications
Disposable syringes,Medical devices,Plastic syringes,Glass syringes,Syringe components,Pharmaceuticals
End products
Tuberculin syringes,Prefilled insulin syringes,Intradermal syringes,Luer lock syringes,Prefilled enoxaparin syringes,Safety syringes with retractable needles,Vaccination syringes,Auto-disable syringes,Needleless syringes,Prefilled heparin syringes,Prefilled saline syringes,Low molecular weight heparin (lmwh) syringes,Biologic drug prefilled syringes
Steps before
Syringe nest unpacking,Syringe tray unpacking
Steps after
Safety guard application,Finger flange assembly,Backstop application,Label inspection
Input ingredients
disposable syringes,glass syringes,plastic syringes,plunger rods,plunger stoppers,self-adhesive labels,needle guard systems,backstop components,needle trap labels
Output ingredients
assembled disposable syringes,labeled syringes
Market info
Bausch Stroebel specializes in manufacturing high-quality pharmaceutical packaging and processing machinery, renowned for their precision, reliability, and innovation in filling and packaging lines for the pharmaceutical industry. They are respected for tailored solutions and advanced engineering.

Technical Specifications


Output
up to 36,000 items/h
Output
up to 24,000 items/h
Container diameter
6 - 20 mm
Syringe capacity
0.5 - 10 ml
Automation
Continuous-motion
Labeling inspection
Vision system for 100% inspection
Set-up time
Short set-up time
Label printer options
Thermal transfer,laser,hot foil batch printer
Label splicer capability
ESE 9752

Operating Characteristics


Working mechanism
Continuous-motion
Integrated steps
Labeling,plunger rod insertion,final assembly
Batch vs. continuous operation
Continuous
Changeover time
Short set-up time
Automation level
Centralized operation
Inspection capability
Vision system for 100% inspection
Modular design
Expandability with extension modules

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Available
Density/particle size
Dependent on syringe type


Cleanroom compatibility
Yes

Physical Characteristics


Compact footprint
Compact design
Machine type
Continuous-motion
Modular design
Expandable with extension modules
Control panel type
Easy and centralized operation
Container type
Glass / Plastic syringes
Container diameter
6 - 20 mm
Syringe volume range
0.5 - 10 ml
Plunger rod insertion
Non-pressure exertion

Custom Options


Modular design
Expandable with modules
Label dispenser options
Various label printers
Camera integration
Multiple camera systems
Vision system
100% inspection for data
Backstop application
Optional module
Safety guard application
Optional module
Interlinking options
Upstream or downstream machines
Label splicer
Automatic splicing
Software upgrades
Available
