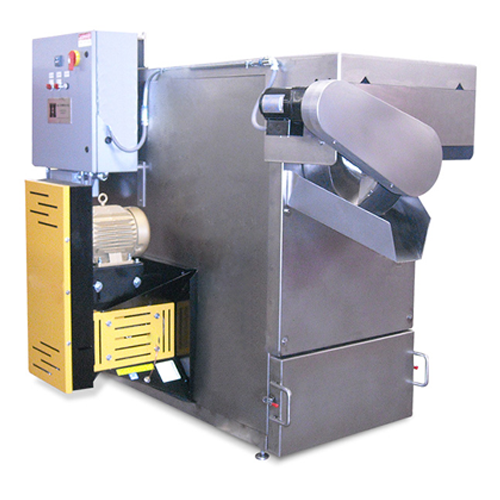

Continuous dry popcorn popper

For snack producers aiming to consistently deliver high-capacity popcorn output, this advanced system automates the popping process with precision controls, ensuring each batch maintains optimal quality and reduces operational costs.

Pops and Processes High-Capacity Popcorn Batches

The Platinum Series Dry Popper from AC Horn Manufacturing offers a high-capacity, continuous popcorn production system designed for industrial-scale snack food manufacturers. Utilizing a forced air combustion system with internal laminar baffling and precise burner controls, this popper ensures efficient popping and consistent product quality across various popcorn flavors and coatings. Suitable for applications such as butter-flavored and caramel-coated popcorn, it supports large throughputs with models ranging from 200 to 1,500 lbs/hr. Automated via advanced PLC controls, it seamlessly integrates into existing production lines while minimizing energy consumption and operational costs. Constructed with extra insulation, the equipment is built for durability and reduced maintenance. Optional infeed screw conveyors and sifting tumblers allow for further customization to meet specific production needs. Ideal for both food and snack production industries, this popper guarantees reliable results in continuous, high-volume operations.

Benefits

  • Enhances production efficiency with high-capacity continuous operation.
  • Minimizes operating costs through optimized energy consumption.
  • Reduces maintenance needs with durable construction and advanced insulation.
  • Ensures consistent product quality with precise popping controls.
  • Customizable to fit specific processes, improving integration into production lines.

General


Applications
Japanese peanuts,Coated nuts,Snacks,Roasted nuts,Pellets,Nut butter,Chips,Corn tortillas,Blanched peanuts,Popcorn
End products
Cheese-flavored pellets,Salted roasted almonds,Wasabi-coated peas,Salsa-flavored tortilla chips,Japanese rice crackers,Chocolate-coated peanuts,Organic almond butter,Caramel-coated popcorn,Honey roasted peanuts,Creamy peanut butter,Butter-flavored popcorn,Blanched salted peanuts,Corn tortilla chips
Steps before
Infeed,Conveying,Material Handling
Steps after
Sifting,Packaging,Collating,Seasoning,Cooling
Input ingredients
popcorn kernels
Output ingredients
popped popcorn,savory popcorn
Market info
AC Horn Manufacturing is renowned for its expertise in manufacturing industrial equipment for food processing, particularly in nut processing, popping equipment, and material handling systems, known for high-quality engineering and reliable performance in demanding industrial applications.

Technical Specifications


Capacity
200 lbs/hr
Capacity
600 lbs/hr
Capacity
1,500 lbs/hr
Max Output
M419A
Max Output
M448
Max Output
M538
Automation
PLC-controlled
Popping system
Forced air combustion
Insulation
Extra insulation
Burner controls
Precise burner controls
Internal baffling
Laminar
Operation mode
Continuous

Operating Characteristics


Working mechanism
Forced air combustion system
Automation level
PLC-controlled
Operation type
Automatic
Heating method
Internal laminar baffling with precise burner controls
Energy efficiency
Low operating costs
Maintainability
Minimal maintenance requirements
Popping capacity
200 lbs/hr to 1,500 lbs/hr
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material to be processed
Popcorn kernels
Processing type
Continuous dry popping
Product consistency
High popping ratio

Physical Characteristics


Control panel type
PLC-controlled

Custom Options


Control system
PLC
Automation level
Automated operation
Insulation
Extra insulation
Customization cooperation
Custom process alignment
Design features
Internal laminar baffling
Material Handling Integration
Infeed screw conveyor
Inspection,Sorting Integration
Sifting tumbler
