Collaborative robot for handling and assembly applications
Optimize your automated production line with a versatile robotic arm designed for efficient handling, assembly, and precision arc welding, enhancing productivity and safety in collaborative environments.

Performs Handling, Assembling, and Welding Operations

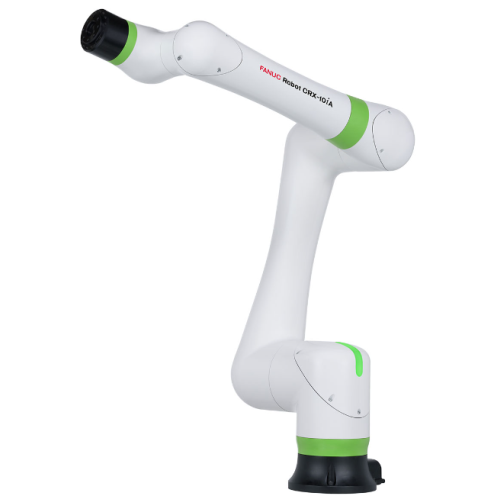

The CRX Series from FANUC offers cutting-edge collaborative robots designed for precision in manufacturing environments. These robots, such as the CRX-5iA and CRX-10iA, excel in handling, assembling, and welding operations. Built to integrate seamlessly into production lines, they are ideal for industries ranging from automotive and electronics to aerospace. With a diverse payload capacity up to 30kg and precision repeatability, the CRX robots automate complex tasks with ease. They feature a versatile installation capability, whether floor-mounted or inverted, and are controlled by the advanced R-30iB Mini Plus controller. These robotic arms optimize throughput and ensure reliable performance, making them a preferred choice for any automation-driven industry.
Benefits
- Enhances production efficiency with versatile installation options to suit varied workspace configurations.
- Ensures precision and reliability with high repeatability, reducing errors in complex tasks.
- Improves safety and collaboration potential, enabling human-robot interaction without compromising productivity.
- Offers scalable solutions with varied payload capacities, adapting to diverse industrial needs.
- Reduces operational costs by streamlining automated processes across multiple departments.
- Applications
- Assembling,Handling,Arc welding
- End products
- Automotive components,Surgical instruments,Metal furniture parts,Small household appliances,Electronic devices
- Steps before
- Material Preparation,Component Alignment
- Steps after
- Quality Inspection,Packaging
- Input ingredients
- manual setup,software interface,peripheral equipment
- Output ingredients
- assembled products,handled materials,arc welded components,collaborative tasks
- Market info
- FANUC is renowned for its expertise in automation, specializing in manufacturing industrial robots, CNC systems, and machine tools, with a strong reputation for reliability and innovation in industrial automation solutions.
- Controlled Axes
- 6
- Max. Payload at Wrist
- 5kg,10kg,20kg,30kg
- Motion Range (X,Y)
- 994mm,1988mm
- 1249mm,2498mm
- 1418mm,2836mm
- 1756mm,3778mm
- 1889mm,3778mm
- Repeatability
- ±0.03mm,±0.04mm,±0.05mm
- Mass
- 25kg,40kg,41kg,135kg
- Installation
- Floor,Upside-down,Angle
- Matching Controller
- R-30iB Mini Plus
- Application
- Handling,Assembling,Arc Welding
- Automation level
- Fully automated
- Changeover time
- Quick setup
- Installation options
- Floor / Upside-down / Angle
- Motion range
- To end of flange (J4=+90deg.)
- Repeatability
- ±0.03 to ±0.05mm
- Controlled axes
- 6
- Max. payload at wrist
- 5kg to 30kg
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Application
- Handling,Assembling,Arc welding
- Controlled axes
- 6
- Max. payload at wrist
- 5kg,10kg,20kg,30kg
- Motion range (X,Y)
- 994mm,1988mm
- 1249mm,2498mm
- 1418mm,2836mm
- 1756mm,3778mm
- 1889mm,3778mm
- Repeatability
- ±0.03mm,±0.04mm,±0.05mm
- Mass
- 25kg,40kg,41kg,135kg
- Installation
- Floor,Upside-down,Angle
- Control panel type
- R-30iB Mini Plus
- Installation options
- Floor,Upside-down,Angle
- Integration possibilities
- Compatible Peripheral Devices for Plugin
