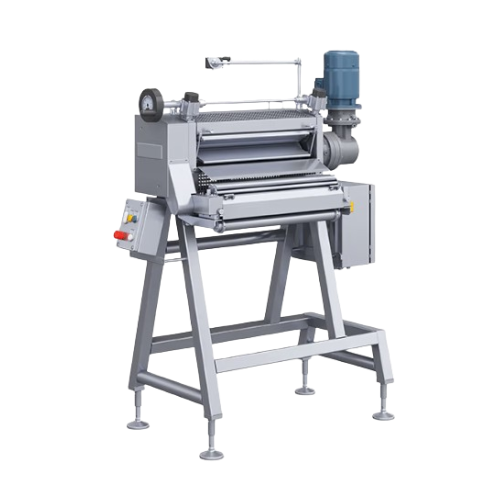

Calibrating rollers for pasta sheet thickness control

Achieve precise pasta sheet thickness control with advanced calibrating rollers, ensuring uniform quality and consistency across a range of pasta varieties, including lasagna and tagliatelle.

Calibrates and Adjusts Sheet Thickness

The LSC-LDC Calibration Rollers from GEA are engineered specifically for pasta and cereal sheet preparation lines, offering precise thickness calibration for products such as lasagna sheets, tagliatelle, and fettuccine. This equipment features a centralized control system that consistently maintains sheet thickness to within ±0.05 mm, ensuring high product uniformity. With a processing capacity of 150-1200 kg/h and sheet widths ranging from 300-1200 mm, it accommodates diverse production scales. The stainless-steel construction guarantees full washability and corrosion resistance, making it ideal for food environments. Integration into continuous and automated operations is seamless, and an optional pre-incision module allows for further customization.

Benefits

  • Ensures product consistency with precise thickness control within ±0.05 mm.
  • Enhances operational efficiency with automated and continuous processing capabilities.
  • Minimizes maintenance time with a fully washable stainless-steel design.
  • Supports diverse production needs with customizable options like the pre-incision module.
  • Accommodates large-scale production with a capacity of up to 1200 kg/h.

General


Applications
Lasagna,Snacks,Pasta,Tagliatelle,Fresh pasta processing,Breakfast cereals
End products
Cannelloni sheets,Fettuccine pasta,Tagliatelle noodles,Lasagna sheets,Pappardelle pasta,Fresh lasagna pasta,Nest pasta varieties
Steps before
Sheet formation,Rolling
Steps after
Cutting,Nesting
Input ingredients
sheet from previous machine,GE,SPW,SPTW
Output ingredients
sheet of desired thickness,nest pasta lines,tagliatelle lines,lasagna lines
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
150–1200 kg/h
Sheet width
300-1200 mm
Accuracy
±0.05 mm
Material
Stainless steel
Automation
Centralized control for sheet thickness

Operating Characteristics


Sheet thickness control
Centralized system
Adjustability
Four adjustable feet
Thickness precision
±0.05 mm
Cleaning process
Fully washable
Additional feature
Optional incision group

Material Compatibility


Cleanability
Yes,stainless-steel components
Corrosive resistance (e.g. acids)
Yes,thanks to stainless-steel

Product type Characteristics


Product lines
Nest,Tagliatelle,Lasagna

Physical Characteristics


Machine Footprint
N/A
Sheet Width
300-1200 mm
Material
Stainless Steel
Adjustable Feet
4 adjustable feet
Control Panel Type
Centralized system
Compact Footprint
N/A
Discharge Method
N/A

Custom Options


Adjustable Features
Four adjustable feet
Material
Stainless steel components
