Ballistic separator for paper, cardboard, and foil

Optimize your waste stream with high-precision material separation, ensuring up to 98% recovery of recyclable materials such as paper, cardboard, and film, while efficiently separating out containers, bottles, and stones for streamlined recycling processes.

Separates Lightweight Materials from Heavy Objects

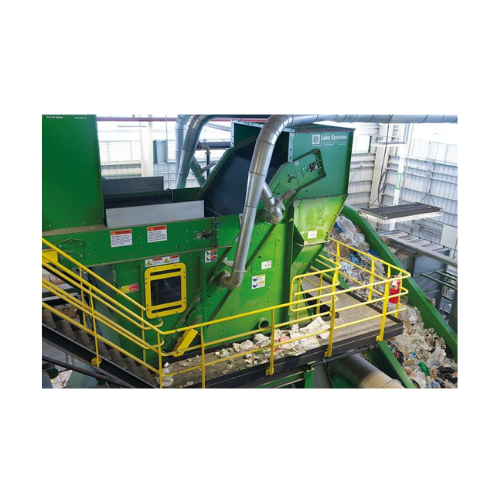

The Lubo PaperMagnet, a state-of-the-art ballistic separator by Bollegraaf, excels in sorting paper, cardboard, and foil from varied waste streams. Utilizing a steep-angled conveyor, it leverages gravity and vacuum force to separate lightweight 2D materials from heavier 3D objects like containers, bottles, and stones, achieving up to 98% recovery. It serves industries like recycling, municipal solid waste processing, and construction debris management, producing end-products such as recycled paper and plastic film recyclate. With adjustable parameters like conveyor speed and airflow pressure, it ensures optimal separation efficiency for various material compositions. Designed for high-speed, continuous operations, it offers easy maintenance and options for increased purity, such as a ruffler device to further differentiate trapped materials.

Benefits

  • Achieves high material purity with up to 98% recovery rates, enhancing recyclate quality.
  • Reduces operational downtime with user-friendly maintenance access.
  • Customizable settings ensure optimal performance for diverse material compositions.
  • Supports continuous, high-speed processing, maximizing plant efficiency.
  • Increases output purity with optional ruffler device for enhanced separation of mixed materials.

General


Applications
Foil,Single stream waste,Containers,Stones,Dual stream waste,Paper,Bottles,Cardboard
End products
Hdpe pellets,Stone aggregates,Plastic film recyclate,Recycled cardboard,Pet flakes,Recycled paper
Steps before
Feeding,Screening
Steps after
Density separation,Process automation,Balers,Conveyor belts
Input ingredients
paper,cardboard,foil,containers,bottles,stones
Output ingredients
recovered paper,recovered cardboard,recovered film,separated heavy objects
Market info
Bollegraaf is known for manufacturing advanced recycling equipment and systems. With a strong reputation for innovation and quality, they specialize in engineered-to-order solutions, optimizing waste processing efficiency and sustainability for diverse industries globally.

Technical Specifications


Separation Accuracy
Up to 98%
Recovery Rate
85–98%
Conveyor Belt Angle
Steep angle
Material Flow Type
Light 2D materials
Material Composition
Adjustable parameters
Airflow Control (Vacuum)
Adjustable
Maintenance Ease
Easy maintenance

Operating Characteristics


Working mechanism
Ballistic separation
Batch vs. continuous operation
Continuous
Recovery rate
85 to 98%
Adjustable parameters
Conveyor speed,Airflow pressure
Maintenance
Easy maintenance,optional service platforms
Material compatibility
Light 2D materials,Heavy 3D materials
Maximum accuracy of separation
98%
Process type
Gravity and vacuum force-assisted

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
High separation efficiency
Discharge method
Gravity belt conveyor
Machine configuration
Ballistic separator
Machine dimensions
Customizable
Control panel type
Adjustable parameters

Custom Options


Service platform
Optional for easy access
