Automatic mechanical line for rigid set-up boxes

Elevate your packaging precision with a high-speed mechanical system tailored for crafting elegant and durable rigid set-up boxes, ensuring exceptional presentation and protection for premium products across various segments.

Forms and Laminates Rigid Boxes

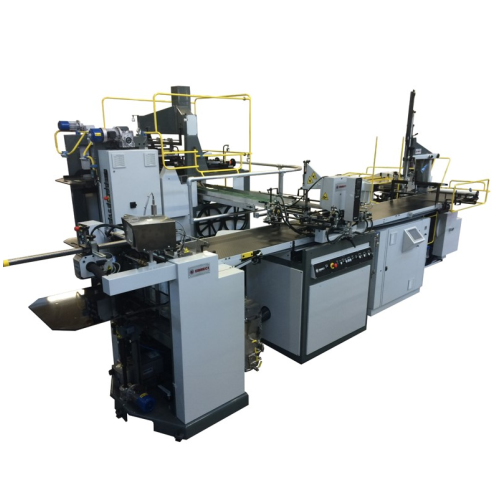

The MC92 SB – DB from Emmeci is an automatic mechanical line designed for producing high-quality rigid set-up boxes. This equipment excels by integrating forming, laminating, and cutting processes, facilitating seamless integration into your production line for packaging luxury goods, electronics, food, and more. Offering a versatile production range, it accommodates box dimensions from 83mm to 600mm in length, making it suitable for diverse end products like chocolate truffles, perfume boxes, and wine gift boxes.

Operationally, the MC92 SB – DB leverages high-speed mechanics and precise motion control, supported by compliance with safety regulations EN ISO 13849-1 and others. This system’s energy efficiency is enhanced by its mechanical structure, reducing operational costs and environmental impact. Its compact footprint, measuring 6800mm in length, allows easy placement within existing facilities. Maintenance is straightforward, adhering to robust industrial standards, and Emmeci offers extensive customization to meet specific customer requirements, ensuring optimal performance and throughput for various manufacturing needs.

Benefits

  • Enhances production efficiency with high-speed mechanical processing.
  • Accommodates varied box sizes, offering flexibility for diverse packaging needs.
  • Simplifies integration with compact design, optimizing floor space utilization.
  • Minimizes energy costs with efficient mechanical operation.
  • Supports compliance with rigorous industry safety standards, ensuring safe operation.

General


Applications
Food,Home care,Personal care,Beverage,Pharma,Healthcare,Luxury goods,Electronics
End products
Chocolate truffles,Perfume boxes,Optical lenses cases,Shoe boxes,Premium spirit bottles,Watch presentation boxes,Wine gift boxes,Soap bars packaging,Digital media packaging,Skincare product packaging,Aromatherapy kits
Steps before
Cutting,Case Laminating
Steps after
Cartoning,Box Filling,Robotic Picking
Input ingredients
rigid board,adhesive,printed paper
Output ingredients
rigid set-up boxes
Market info
Emmeci, part of the Coesia Group, is renowned for designing and manufacturing high-precision automatic machinery for luxury packaging production, particularly rigid box making, emphasizing innovation, technology, and quality in engineered-to-order equipment.

Technical Specifications


Max box height
130 mm
Min box height
12 mm
Max box length
600 mm
Min box length
83 mm
Max box width
400 mm
Min box width
95 mm
Machine depth
4500 mm
Machine height
3230 mm
Machine length
6800 mm
Machine weight
5000 kg
Motion control
Mechanical

Operating Characteristics


Box Making Technology
Automatic Mechanical Line
Production Line Versions
Two Versions
Industry Application
Food,Electronics,Personal Care,Home Care,Pharma,Healthcare,Luxury Goods,Beverage
Segment Applications
Baked Goods,Chocolate,Consumer Electronics,Digital Media Carriers,Cosmetics,Fragrances,Air Care,Optical,Clothing,Footwear,Jewellery,Watches,Small Leather Goods,Medical Devices,Wine,Spirits,Luxury Boxes
Box Size Range
Height
Regulatory Compliance
EN ISO 13849-1,EN ISO 13849-2,EN ISO 13857,EN 12100,EN 349,EN 6100-6-2,EN 6100-6-4,IEC 60204-1
Motion Control Type
Mechanical

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Safety Regulations
EN ISO 13849-1,EN ISO 13849-2,EN ISO 13857,EN 12100,EN 349,EN 6100-6-2,EN 6100-6-4,IEC 60204-1

Physical Characteristics


Machine depth
4500 mm
Machine height
3230 mm
Machine length
6800 mm
Machine weight
5000 kg
Max box height
130 mm
Min box height
12 mm
Max box length
600 mm
Min box length
83 mm
Max box width
400 mm
Min box width
95 mm

Custom Options


Box size
Max height
Footprint dimensions
Depth
Machine weight
5000 kg
