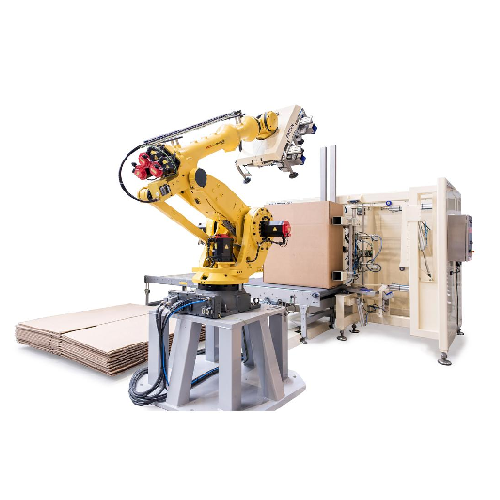

Automated case erector for large boxes

Streamline your packaging line by eliminating manual labor with a solution that forms, erects, and seals pallet-sized cardboard boxes efficiently, enhancing operational flow and reducing storage demands.

Automates Erecting of Large and RSC Boxes

The XL Case Erector CE-21-XL by Pattyn Packaging Lines is a fully automated solution designed for efficiently forming large pallet-sized and RSC boxes. This equipment stands out with its ability to handle both new and re-used boxes, available with either hot melt or tape sealing to ensure stability and continuous production at low running costs. Capable of processing up to 90 units per hour, it integrates seamlessly into packaging lines, enhancing throughput for industries like food, logistics, and packaging. Compatible with large cereal boxes, industrial-sized detergent packaging, and more, it operates with high autonomy by automatically feeding cartons and dispensing empty pallets. Constructed for robust operation, it minimizes manual labor, streamlining processes for manufacturers, logistics providers, and e-commerce fulfillment centers. The CE-21-XL is engineered for reliability, featuring options for customization to meet specific dimensional needs and ensuring a cost-effective and ergonomic packaging solution.

Benefits

  • Minimizes manual labor with high autonomy operation, reducing ergonomic strain in packaging tasks.
  • Enhances efficiency by erecting up to 90 boxes per hour, increasing overall production output.
  • Optimizes space usage as it eliminates the need for preassembled box storage.
  • Offers continuous operation through automatic infeed and outfeed of pallets.
  • Lowers running costs with options for hot melt sealing, ensuring stable and reliable case handling.

General


Applications
Telescopic boxes,Packaging lines,Bulk packaging,Rsc boxes,Cardboard boxes,Pallet sized boxes
End products
Large cereal boxes,Large electronics boxes,Telescopic storage containers,Industrial-sized detergent boxes,Corrugated shipping boxes,Oversized appliance cartons,Bulk consumer goods packaging
Steps before
Steps after
Input ingredients
RSC boxes,telescopic boxes,cartons,pallet
Output ingredients
formed boxes,erected cases,empty pallets
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Automation
Fully automated
Case erection speed
Up to 90 cases/hour
Cardboard box dimensions
Min. L.1000 x W.700 x D.700 - Max. L.1300 x W.1200 x D.1200
Adhesive method
Hot melt or tape
Operation type
Continuous
Box type
RSC or telescopic boxes

Operating Characteristics


Working mechanism
Fully automated,robotic
Integrated steps
Case erecting,bottom flap closing
Batch vs. continuous operation
Continuous
Production capacity
Up to 90 cases/hour
Type of carton handling
New or re-used RSC boxes,telescopic boxes
Flap closing method
Hot melt or tape execution
Box making timing
Just in time
Automation level
PLC-controlled
Operational autonomy
High autonomy with automatic infeed/outfeed

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Case size range
Min. L.1000 x W.700 x D.700 / Max. L.1300 x W.1200 x D.1200
Discharge method
Automatic outfeed of empty pallets
Input method
Automatic infeed of cartons on a pallet

Custom Options


Case size range
Min. L.1000 x W.700 x D.700 - Max. L.1300 x W.1200 x D.1200
Execution type
Hot melt / Tape
Integration possibilities
Compatible with PattynXL bag inserter,weigh filler,bag closer
