Automated case erector for cardboard boxes

Enhance your packaging line with seamless box forming and efficient case erecting, ensuring minimal downtime and lower operating costs with reliable bottom flap sealing for consistent carton packaging.

Forms and Seals Corrugated Cardboard Boxes

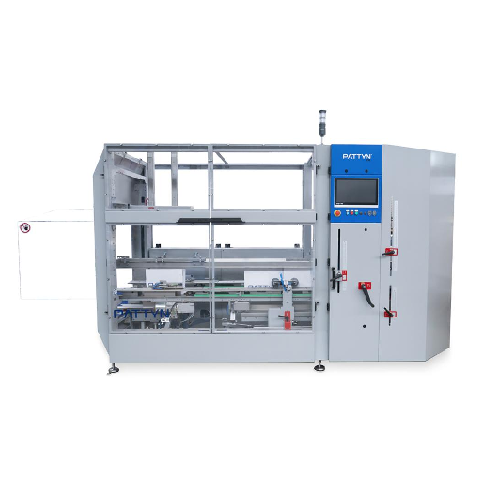

The Case Erector CE-31 from Pattyn Packaging Lines is an automated solution crafted for seamless integration into your packaging line. This machine efficiently forms and seals corrugated cardboard boxes, supporting production in food, packaging, and manufacturing industries. Utilizing hot melt or tape execution, it ensures stable case transport and reduced running costs. With the capacity to handle boxes up to 730mm in length, the CE-31 operates at up to 16 cases per minute, adapting easily to various carton qualities with minimal adjustments. It’s designed for high-speed, continuous operations, ensuring squareness and preventing carton damage. For enhanced packaging line automation, combine it with Pattyn’s bag inserters, weigh fillers, and palletizers, achieving a fully automated bulk packaging system.

Benefits

  • Improves production efficiency by minimizing carton crushing and ensuring precise box squareness.
  • Lowers operational costs with continuous production capabilities using hot melt sealing.
  • Enhances flexibility with quick format changes requiring only five adjustments.
  • Streamlines operator interface and reduces errors with a 15-inch HMI.
  • Ensures reliable operation even with thin or poor-quality cartons.

General


Applications
Packaging,Cardboard boxes,Cartons,Bulk packaging
End products
Consumer goods cartons,Bulk packaged cereals,Pre-packed industrial materials,Palletized packaged goods,Corrugated cardboard boxes
Steps before
Case forming preparation,Material handling setup
Steps after
Bag insertion,Weigh filling,Bag closing,Case closing,Palletizing
Input ingredients
cardboard boxes,corrugated cartons,thin cartons
Output ingredients
erected boxes,formed cases
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Automation
Fully Automated
Case size
Min
Case length to height relation
D/L < 1.3
Speed
Hot melt
Control interface
15” HMI
Box closure method
Hot melt or tape
Changeover adjustments
Only 5 adjustments
Machine type
Case Erector
Material compatibility
Corrugated cartons

Operating Characteristics


Box forming method
Automatic
Case erecting speed
12–16 c/min
Case closing method
Hot melt / Tape
Changeover time
5 adjustments
Automation level
Fully automated
Size change flexibility
Quick format change
Handling of poor corrugated cartons
Accommodated
Operator interface
15” HMI

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Carton Closure Type
Hot melt / Tape

Physical Characteristics


Case closing method
Hot melt or Tape

Custom Options


Control panel type
15” HMI
Integration possibilities
Bag inserter,weigh filler,bag closer,case closer,palletizer
Closure method
Hot melt / Tape
Format changeover
Easy format changeover
Carton size compatibility
Min
Max
L.730 x W.500 x H.400
